MILIO丨50W Solar Street Light

Robust Design | 170lm/W | Microwave Sensor

Model NO.

MILIO AIO-50WM

MILIO AIO-80WM

LED Power

50W丨8,500lm

80W丨12,800lm

LiFePO4 Battery

12.8V 12AH

12.8V 30AH

Solar Panel

40W 18V Mono

60W 18V Mono

Pole Height

3~6 meters

5~8 meters

The MILIO series is a premium, compact solar street light specifically engineered for use with lower light poles ranging from 3 to 6 meters in height. Designed with durability and performance in mind, it features a robust die-cast aluminum housing for superior heat dissipation and weather resistance. Powered by an advanced MPPT solar controller, MILIO ensures optimal energy conversion and battery charging efficiency.

The integrated A-grade LiFePO4 battery guarantees long-lasting, stable performance with extended lifespan. Ideal for urban pathways, residential streets, and parks, garden lighting etc, MILIO combines cutting-edge technology with a sleek, compact design for reliable outdoor lighting.

Key Componente & Advantages

MPPT Charge Controller

maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。

High Brightness Led

High brightness led enhances visibility and safety while providing energy-efficient

Programmable by Remote

The lighting program can be modified anytime by remote control according to customers' requirement.

IP65 Waterproof

IP65 rating provides superior protection against dust and water, ensuring reliable performance in various outdoor conditions.

High Efficiency LED

High-brightness LED chips provide superior illumination, enhancing visibility and energy efficiency.

Long LifeTime Battery

Quality lithium battery Long-lasting reduce maintenance costs and increase system reliability.

Main Specification

Model NO.

MILIO AIO-50WM

MILIO AIO-80WM

LED Power

50W max

80W max

Luminous Flux

170lm/W

CCT

3000K~6000K

●

Beam Angle

Type II/III

●

LiFePO4 Battery

12.8V 12AH

12.8V 30AH

Battery Lifetime

2000 cycles

●

Solar Panel

40W 18V Mono

60W 18V Mono

Solar Controller

MPPT

●

Motion Sensor

PIR / Microwave

●

Remote Control

Yes

●

Dimension

740*350*85mm

900*380*88mm

Operating Temp.

-20℃ ~+60℃

●

IP Rating

IP66

●

Pole Diameter

60mm

●

Pole Height

3~6 meters

5~8 meters

Warranty

3 Years

●

Main Specification

Model NO.

LED Power

Luminous Flux

CCT

Beam Angle

LiFePO4 Battery

Battery Lifetime

Solar Panel

Solar Controller

Motion Sensor

Remote Control

Dimension

Operating Temp.

IP Rating

Pole Diameter

Pole Height

Warranty

MILIO AIO-50WM

MILIO AIO-80WM

50W max

80W max

170lm/W

3000K~6000K

●

Type II/III

●

12.8V 12AH

12.8V 30AH

2000 cycles

●

40W 18V Mono

60W 18V Mono

MPPT

●

PIR / Microwave

●

Yes

●

740*350*85mm

900*380*88mm

-20℃ ~+60℃

●

IP66

●

60mm

●

3~6 meters

5~8 meters

3 Years

●

Download

Data Sheet

User Manual

Certificate

Datasheet of MILIO 30W

5.11 MB

*.pdf

Download

User Manual of MILIO 30W

711KB

*.pdf

Download

Certificates of MILIO 30W

19.56MB

*.rar

Download

You May Ask

Can all-in-one solar light connect with 220V AC?

ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.

What's the type of sensor for all in one?

Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.

What is all-in-one solar street light?

All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.

What's the material of all-in-one solar street light?

Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light

What're the benefits of ZAIN battery box outside the case?

The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.

What is the default working mode of ZAIN solar street light

2h 100%+4h（30% + 70% sensor）+7h（20% +50% sensor） , it can be modified easily by remote control according to customers' requirement.

What‘s the adjustable range of LED board ?

The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.

What is the diameter of the pole for zain AIO solar light?

There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.

Can we customized the light fixture color ?

Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS

10.

Can i use a AC power adapter to charge batteries?

We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.

11.

What is the maximum battery capacity of ZAIN ?

The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.

About

Products

Project Gallery

Download

Expertise

Contact

New Arrivals

About

Products

Project Gallery

Download

Expertise

Contact

MILIO丨50W Solar Street Light

Robust Design | 170lm/W | Microwave Sensor

MILIO丨50W Solar Street Light

Robust Design | 170lm/W | Microwave Sensor

Key Componente & Advantages

MPPT Charge Controller

High Brightness Led

Programmable by Remote

IP65 Waterproof

High Efficiency LED

Long LifeTime Battery

Main Specification

Main Specification

Download

Projects Cases

Projects Cases

AIO Solar Street Lights for New Murabba Bridge in KSA

AIO Solar LED Street Light in UAE

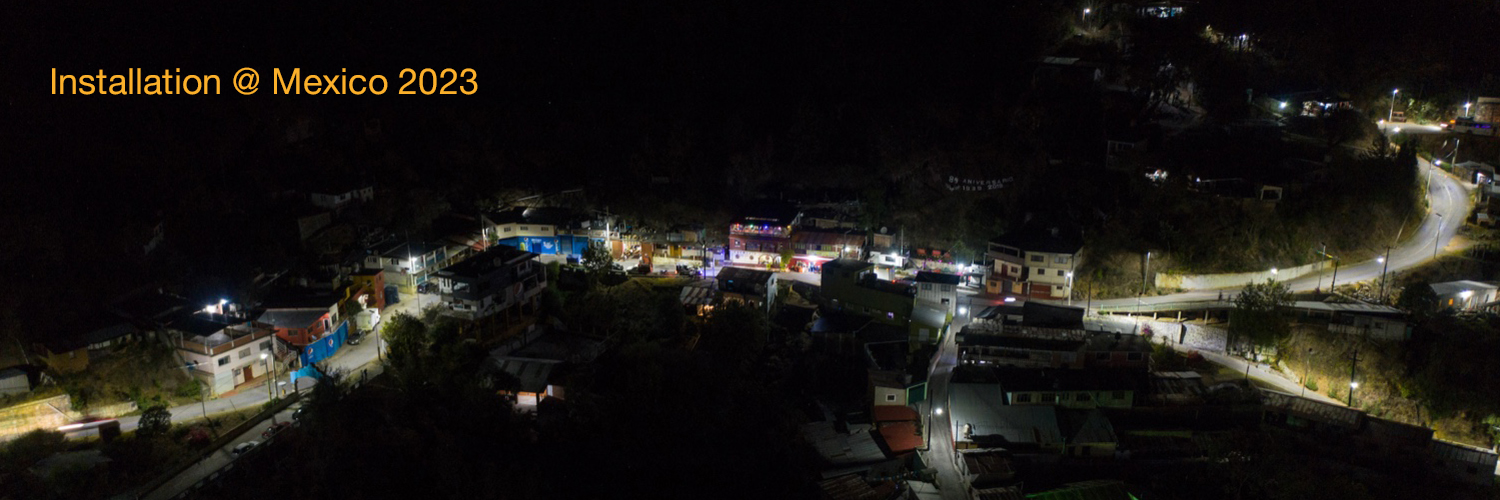

MILIO 50W AIO solar street light in Mexico
