GeoFlex | Foldable Polygonal Solar Panel

Scalable | Foldable | Linkable

Model Number

OCTA-20018

OCTA-25018

P.max

200W

250W

Vmp

18V/36V

Imp

11.1A

13.9A

Dimension

1560*290*270mm

1560*360*340mm

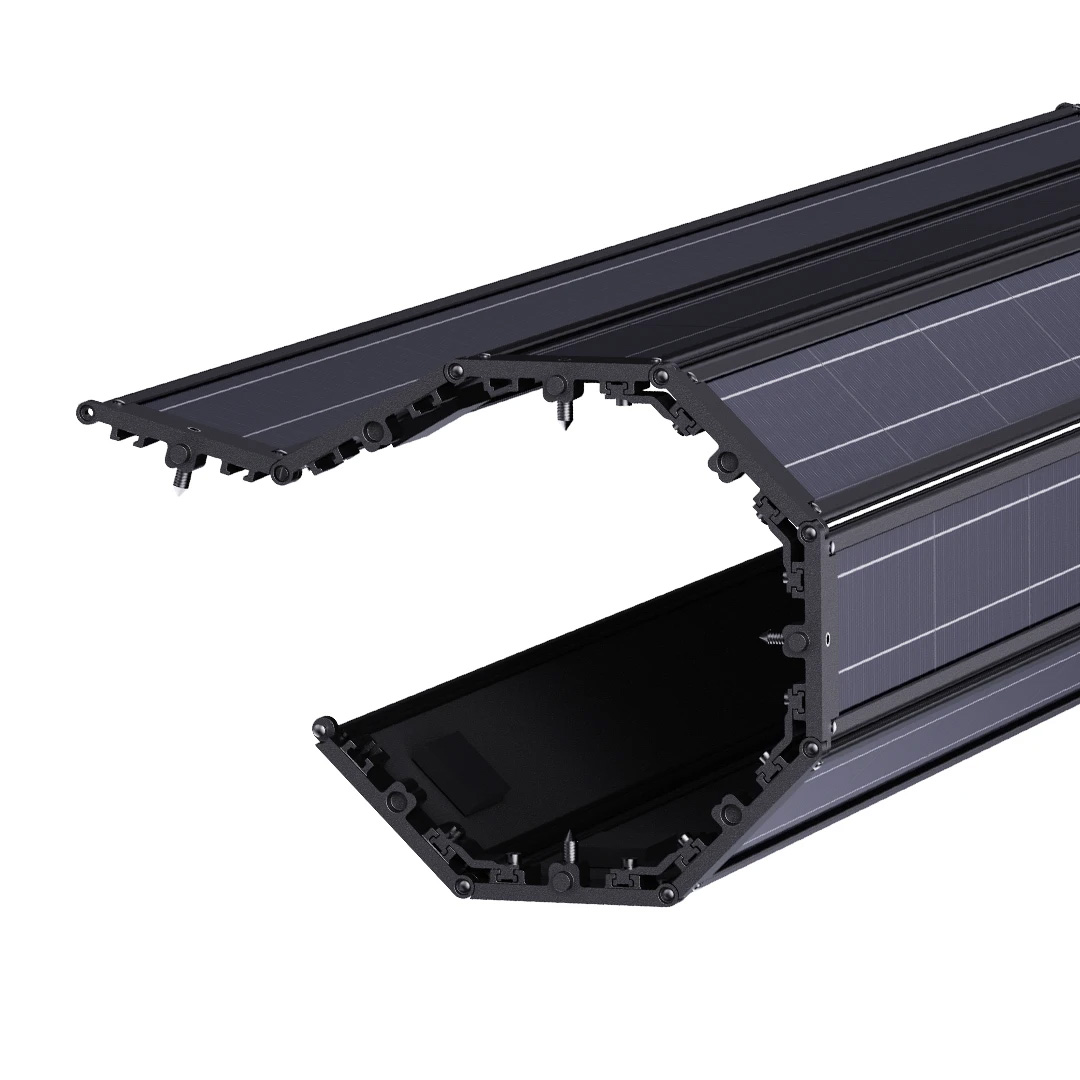

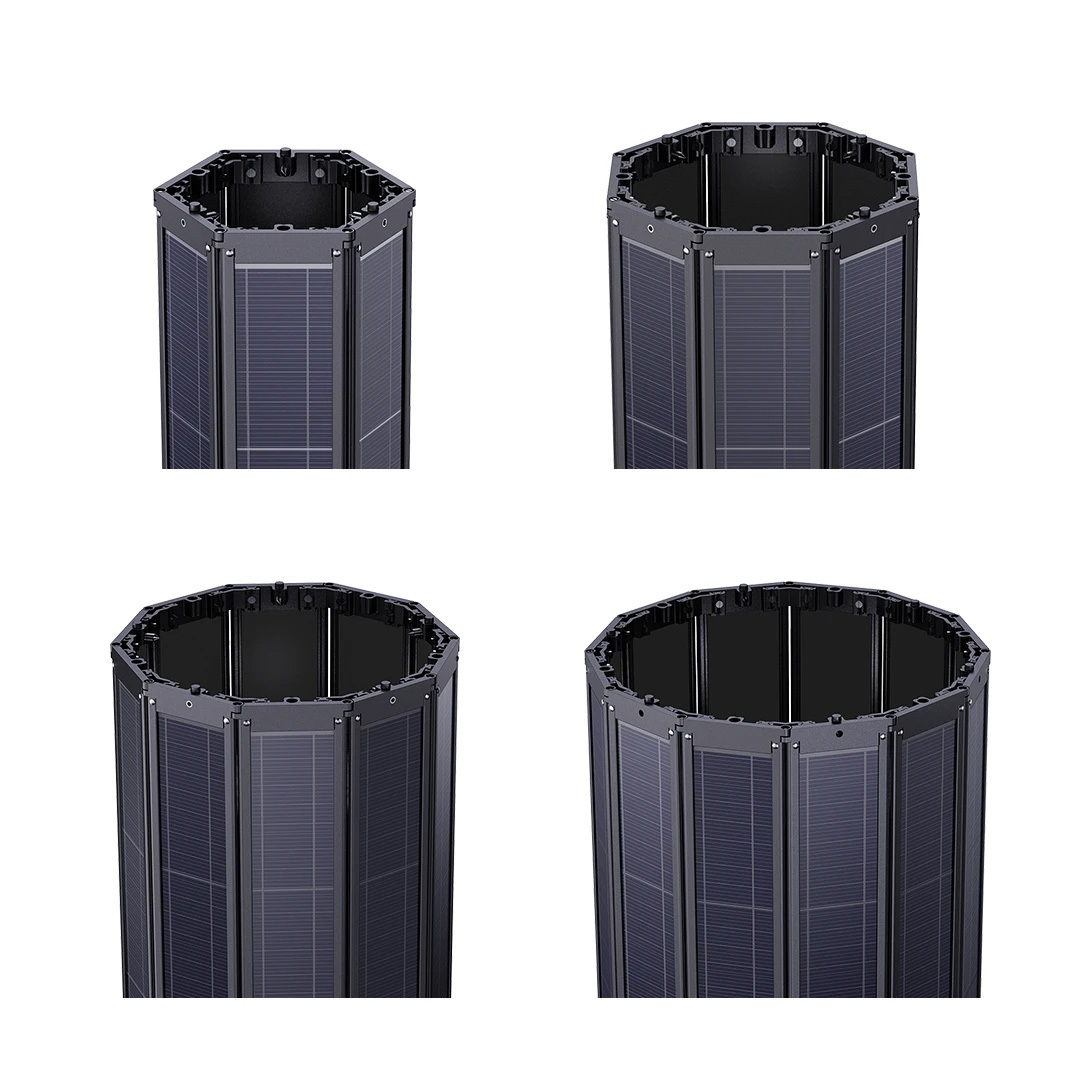

The GeoFlex Series introduces an innovative foldable polygonal solar panel design, adaptable to various shapes such as hexagons, octagons, or more, allowing for customized power outputs. The foldable structure reduces packaging volume by over 50%, significantly cutting international shipping costs. Its modular design enables seamless expansion for higher power needs, while the 360-degree charging capability ensures optimal sunlight capture throughout the day.

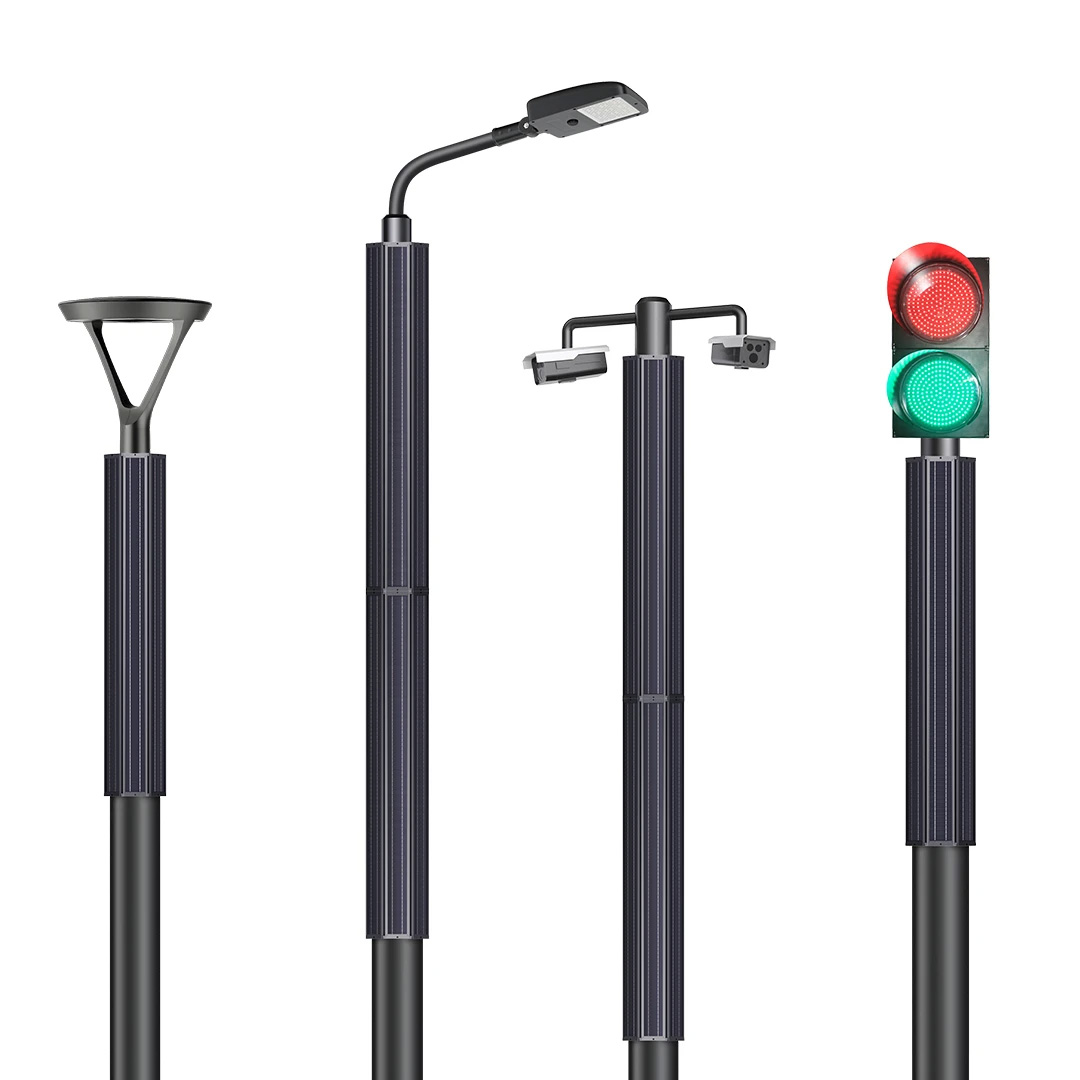

This system features vertical cylindrical solar panels, offering superior wind resistance and a sleek design that blends harmoniously with urban environments, preserving city aesthetics. Additionally, the design prevents snow accumulation and ensures excellent durability, making it ideal for solar streetlights, surveillance systems, traffic signals, and more. The GeoFlex Series is not just versatile; it's a sustainable solution engineered for functionality, efficiency, and modern urban integration.

Key Componente & Advantages

Fit to Different Size

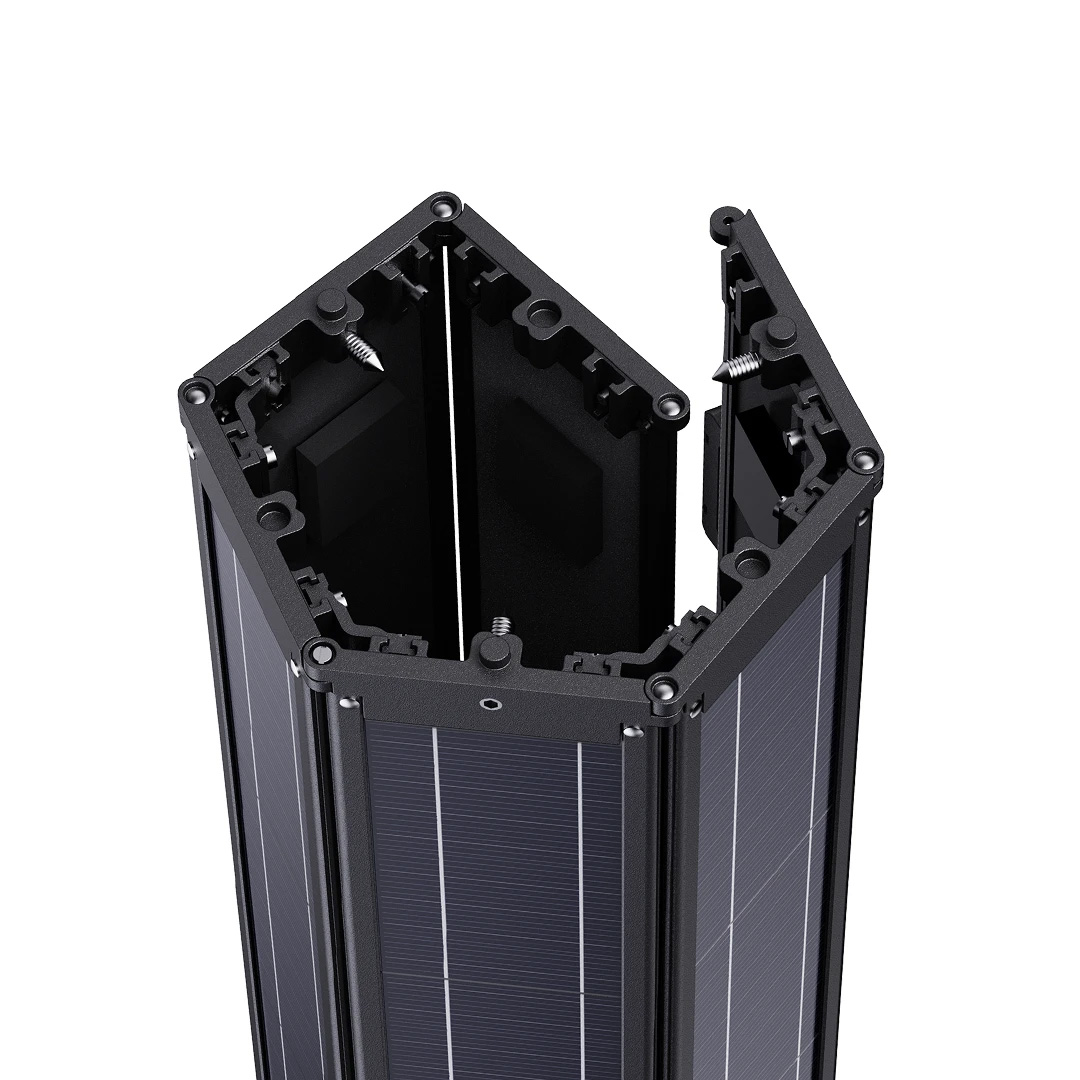

SolarWrap vertical solar cylinder is able to cater to different sizes and different shapes of mounting poles。

360° Full Day Charging

Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.

Dust & Sand Free

Sand & dust will not accumulate on the vertically installed solar panel. no need to clean the solar panels frequently

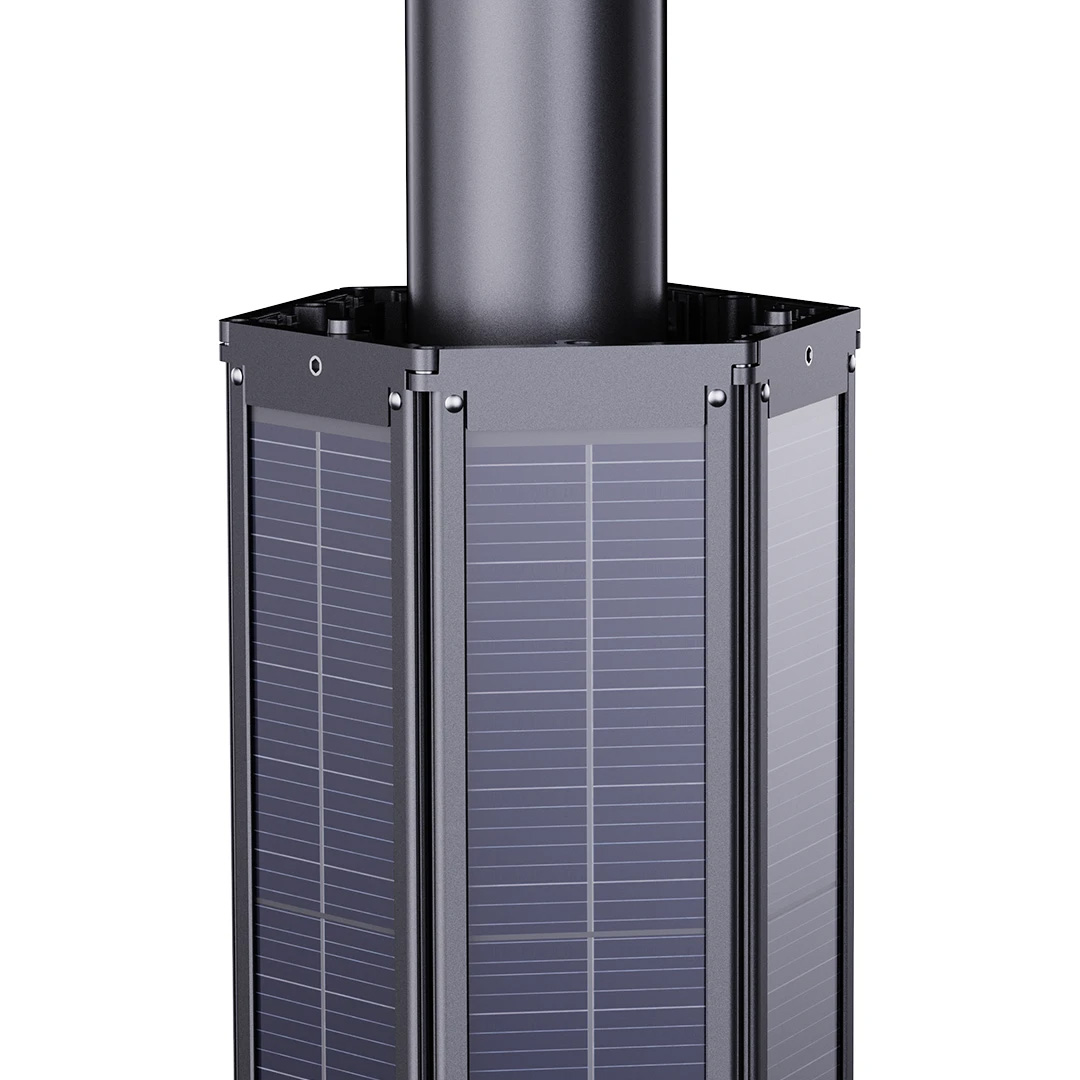

Modular Installation

It adopts modular concepts and uses male and female sliding installation structures to make the installation easier。

Strong Wind Resistance

Smaller area facing wind, it has very great wind resistant performance up to 160km/H.

Aesthetics Appearance

The poles adopted vertical PV cylinder blend into environments perfectly without disturbing the beauty of the view.

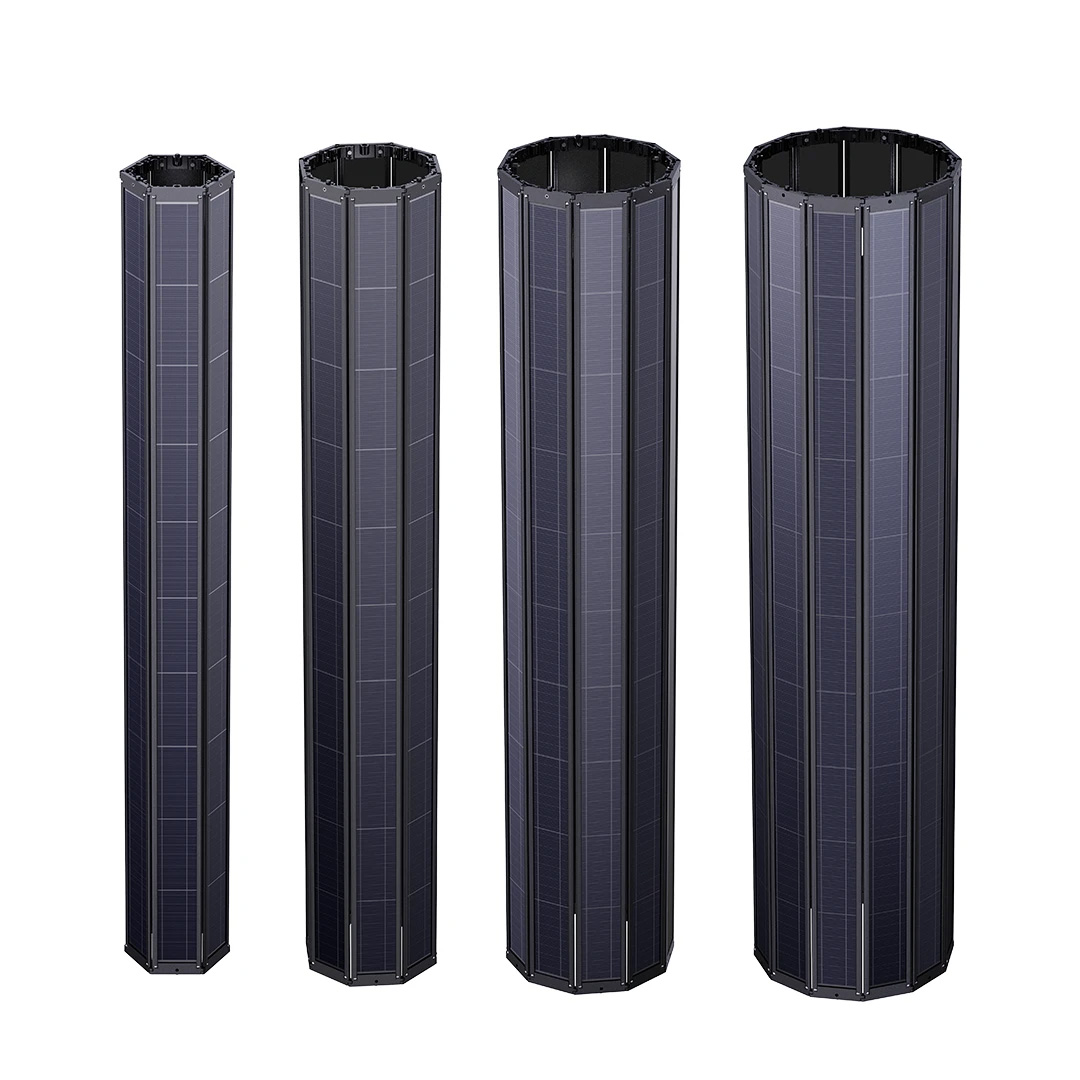

Main Specification

Model number

HEXA-15018

OCTA-20018

OCTA-25018

DODE-30018

Power.max

150 Watts

200 Watts

250 Watts

300 Watts

Vmp

18V/36V

●

Imp

8.3A

11.1A

13.9A

16.7A

Dimension

1560*250*196mm

1560*290*270mm

1560*360*340mm

1560*425*410mm

Max Pole Diameter

140mm

190mm

260mm

330mm

Profile Material

Glass + Aluminium

●

Cable & Connector

2.5mm Universal MC4

●

Solar Cell Efficiency

23.2%

●

Solar Cell Type

MONO

●

Working Temp.

-40°C ~ 85°C

●

Warranty

5 years

●

N.W / G.W

12.80/14.50 kg

16.80/18.50 kg

20.40/23.60 kg

25.30/28.50 kg

Certificates

CE, IP66

●

Main Specification

Model number

Power.max

Vmp

Imp

Dimension

Max Pole Diameter

Profile Material

Cable & Connector

Solar Cell Efficiency

Solar Cell Type

Working Temp.

Warranty

N.W / G.W

Certificates

HEXA-15018

OCTA-20018

OCTA-25018

DODE-30018

150 Watts

200 Watts

250 Watts

300 Watts

18V/36V

●

8.3A

11.1A

13.9A

16.7A

1560*250*196mm

1560*290*270mm

1560*360*340mm

1560*425*410mm

140mm

190mm

260mm

330mm

Glass + Aluminium

●

2.5mm Universal MC4

●

23.2%

●

MONO

●

-40°C ~ 85°C

●

5 years

●

12.80/14.50 kg

16.80/18.50 kg

20.40/23.60 kg

25.30/28.50 kg

CE, IP66

●

Download

Data Sheet

User Manual

Certificate

You May Ask

What's the advantages of vertical solar cylinder?

Auroras's vertical solar module can avoid dust/snow accumulation, anti-wind resistant, and significantly lowers manpower in maintenance as well as aesthetical appearance.

Can I just buy the vertical solar module individually without battery or controller?

Yes, Our solution is very flexible. You can buy the whole system or just the vertical solar model. If you purchase it separately, Please confirm the right voltage you need for your system.

What is the diameter of the pole suitable for the hexagon vertical solar module?

75mm-120mm， the size is adjustable by the screws of mounting brackets.

What is the screw's regular size in the module bracket?

The standard is M8*60mm.But we can provide longer or shorter screw according to the pole diameter.

How are two vertical solar modules connected?

Between the two modules,we will provide the 30mm MC4 cable adapter. two modules are connected in parallel.

Is there a hole on in the pole for the solar panel cable?

Yes, The external cable of solar panel need to go inside of pole from this hole and connect to controller & battery.

Can i use 36V solar panel to charge 12V battery?

Yes. but you need to use MPPT solar charger instead of PWM solar charge controller.

Can you provide the special drawing of pole to match your vertical solar module?

Yes, please contact our sales team.

We need to install the solar cylinder near the sea side, will the product get rust?

We are able to make the powder coating in anti-corrosion.

10.

Can i arrange the pole from local market?

Yes, You can, but please confirm the drawing of pole before you arrange it, so the sizes can match to each other.
