200W AIO Solar Street Light for Main Road

Adjustable LED Module | 170lm/W | CB Approved
LED Power
180W
200W
LED Luminous
170lm/W
170lm/W

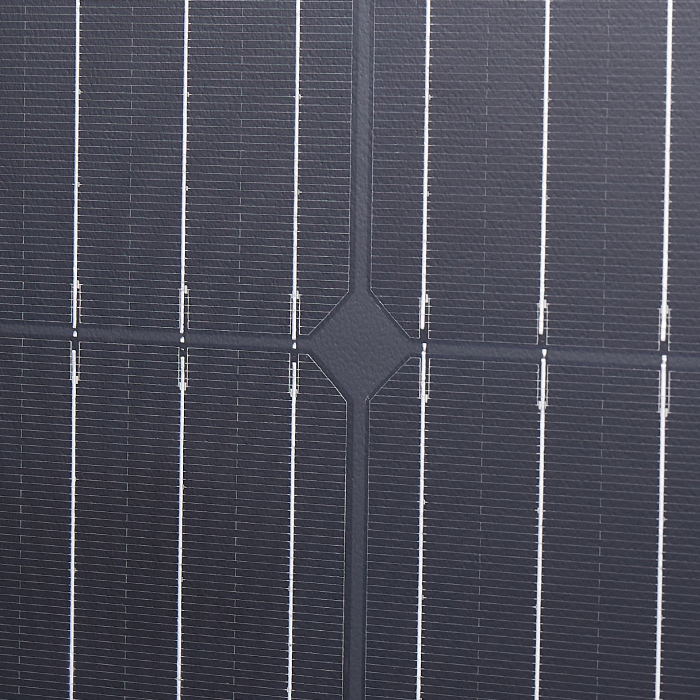

Solar Panel
18V 125W
36V 135W
LiFePO4 Battery
12.8V 768WH
25.6V 921WH
Warranty
5 years
all in one solar parking lot light
Dusk to dawn solar led light
Lithium battery solar integrated light
hyper tough solar led road light
ZIGBEE solar street light
great versatility solar light
all in one solar parking lot light
Dusk to dawn solar led light
Lithium battery solar integrated light
hyper tough solar led road light
ZIGBEE solar street light
great versatility solar light

200W AIO Solar Street Light for Main Road

Adjustable LED Module | 170lm/W | CB Approved
LED Power
180W
200W
LED Luminous
170lm/W
170lm/W
Solar Panel
18V 125W
36V 135W
LiFePO4 Battery
12.8V 768WH
25.6V 921WH
Warranty
5 years
Send inquiry
More info

The ZAIN series is a high-quality, engineering-grade solar street light designed for a wide range of applications, from 5-meter to 12-meter pole heights. Crafted with a robust die-cast aluminum housing and premium-grade components, this product is built to last. The lithium battery uses high-temperature-resistant 32700 cells, with a lifespan of over 2000 cycles. Each night, the battery's depth of discharge is capped at 60%, ensuring long-term durability and performance.


At the heart of the ZAIN series are ultra-bright SMD5050 LEDs, delivering an impressive 170lm/W. To maximize light efficiency, we’ve developed the ULTRA SLIM series lens, a uniquely long and narrow design that boosts light utilization to over 93%, dramatically reducing waste and ensuring superior road illumination uniformity.


Equipped with a high-efficiency MPPT solar controller and an intelligent sensor, the ZAIN solar street light optimizes energy savings while providing reliable lighting performance. It is the ideal choice for parks, residential areas, pedestrian pathways, and even city main roads. If your project demands quality, the ZAIN solar street light is the ultimate solution, combining cutting-edge technology with unparalleled durability.



Key Componente & Advantages

MPPT Charge Controller
maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。
LiFePo4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.

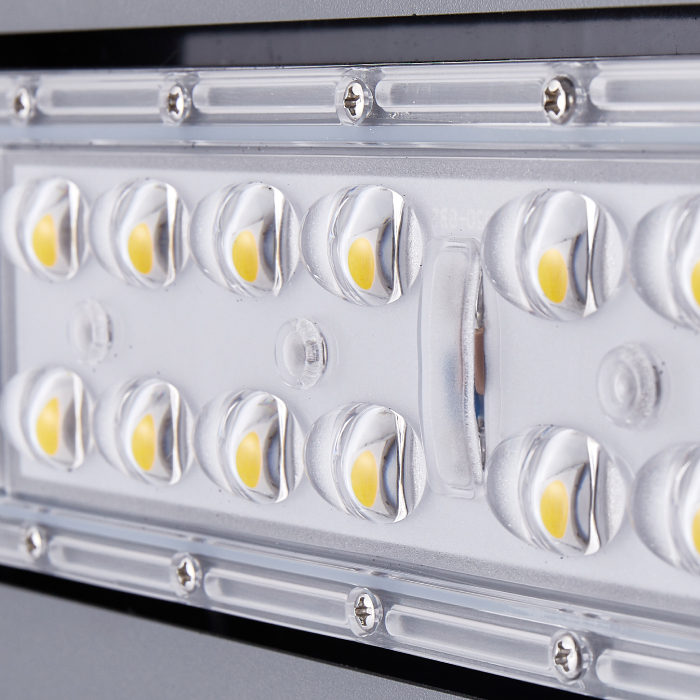

High Brightness Led
High brightness led enhances visibility and safety while providing energy-efficient
Programmable by Remote
The lighting program can be modified anytime by remote control according to customers' requirement.

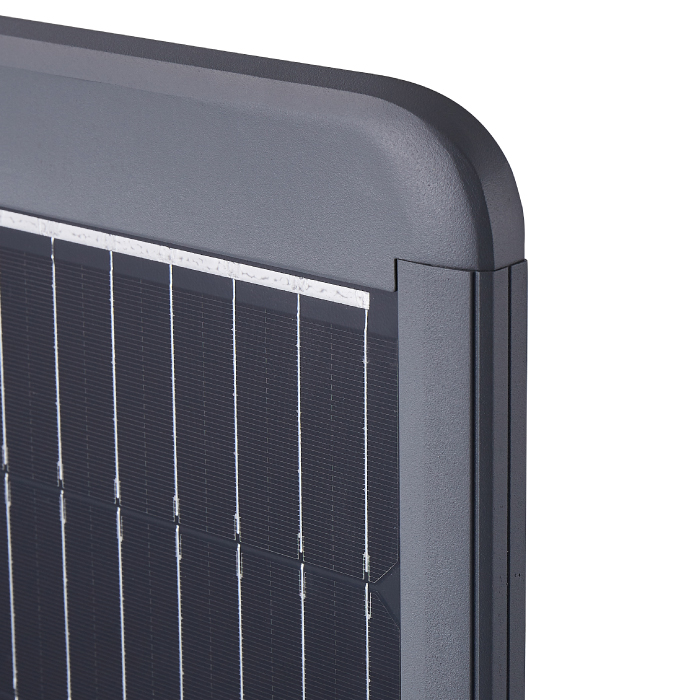

Robust Design
Robust design of light fixture provides superior durability, corrosion resistance, and heat dissipation.

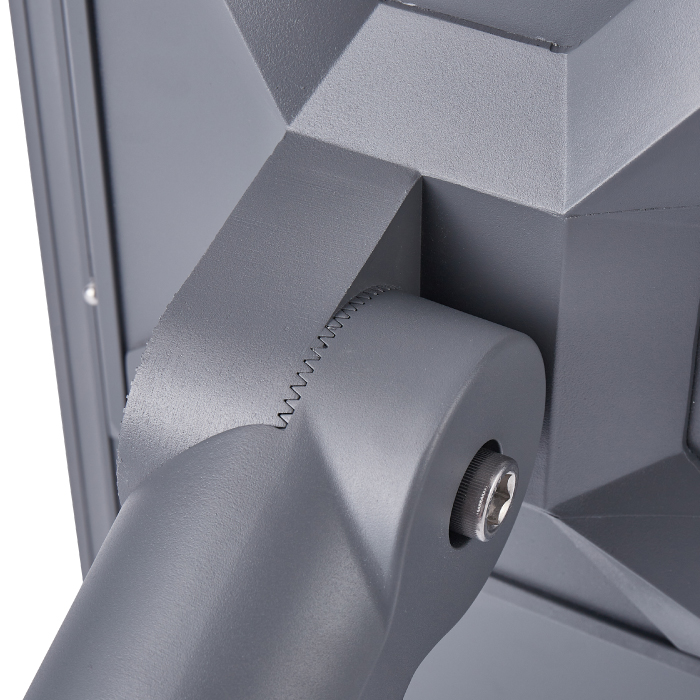

Adjustable LED Module
The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.

Main Specification

Item number
AIO-100WZ
AIO-200WZ
AIO-250WZ
LED power
180W
200W
250W
Luminous
170lm/W
170lm/W
170lm/W
CCT range
2200K~6500K
LED module
SMD5050 64pcs
SMD5050 80pcs
LiFePO4 battery
12.8V 768WH
25.6V 921WH
25.6V 1075WH
Solar panel
18V 125W
36V 135W
36V 158W
Product size
1590*420*350mm
1360*530*380mm
1480*530*380mm
Charge controller
MPPT
Pole size
76mm
Installation height
6 ~ 12m
8 ~ 12m
8 ~ 14m
Warranty
5 years

Main Specification

Item number
LED power
Luminous
CCT range
LED module
LiFePO4 battery
Solar panel
Product size
Charge controller
Pole size
Installation height
Warranty
AIO-100WZ
AIO-200WZ
AIO-250WZ
180W
200W
250W
170lm/W
170lm/W
170lm/W
2200K~6500K
SMD5050 64pcs
SMD5050 80pcs
12.8V 768WH
25.6V 921WH
25.6V 1075WH
18V 125W
36V 135W
36V 158W
1590*420*350mm
1360*530*380mm
1480*530*380mm
MPPT
76mm
6 ~ 12m
8 ~ 12m
8 ~ 14m
5 years

Download

Data Sheet
User Manual
Certificate

Projects Cases

Projects Cases

You May Ask

1.
Can all-in-one solar light connect with 220V AC?
ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.
2.

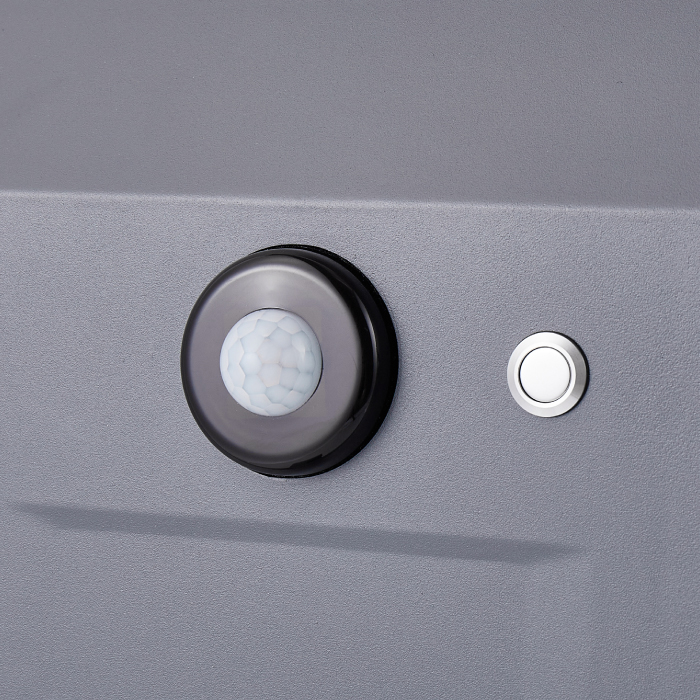

What's the type of sensor for all in one?
Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.
3.
What is all-in-one solar street light?
All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.
4.
What's the material of all-in-one solar street light?
Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light
5.
What're the benefits of ZAIN battery box outside the case?
The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.
6.
What is the default working mode of ZAIN solar street light
2h 100%+4h(30%  +  70% sensor)+7h(20% +50% sensor) , it can be modified easily by remote control according to customers' requirement.
7.
What‘s the adjustable range of LED board ?
The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.
8.
What is the diameter of the pole for zain AIO solar light?
There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.
9.
Can we customized the light fixture color ?
Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS
10.
Can i use a  AC power adapter to charge batteries?
We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.
11.
What is the maximum battery capacity of  ZAIN ?
The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.
