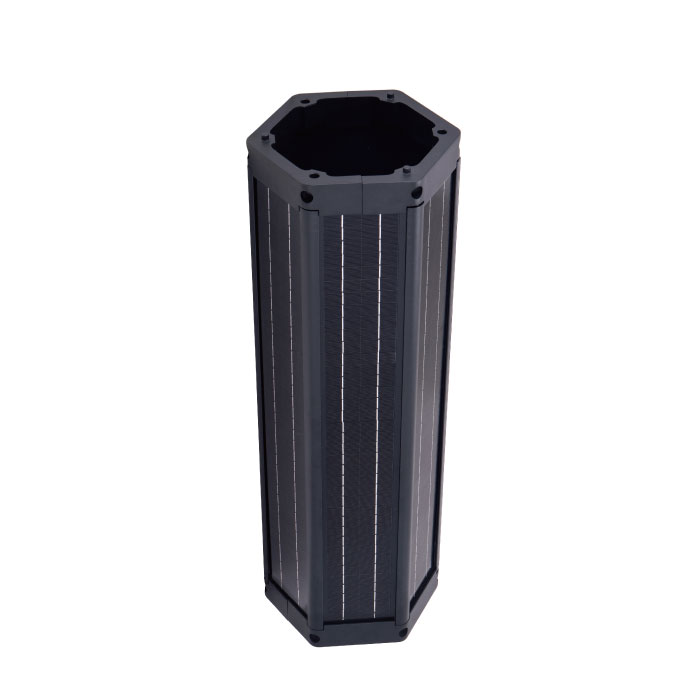

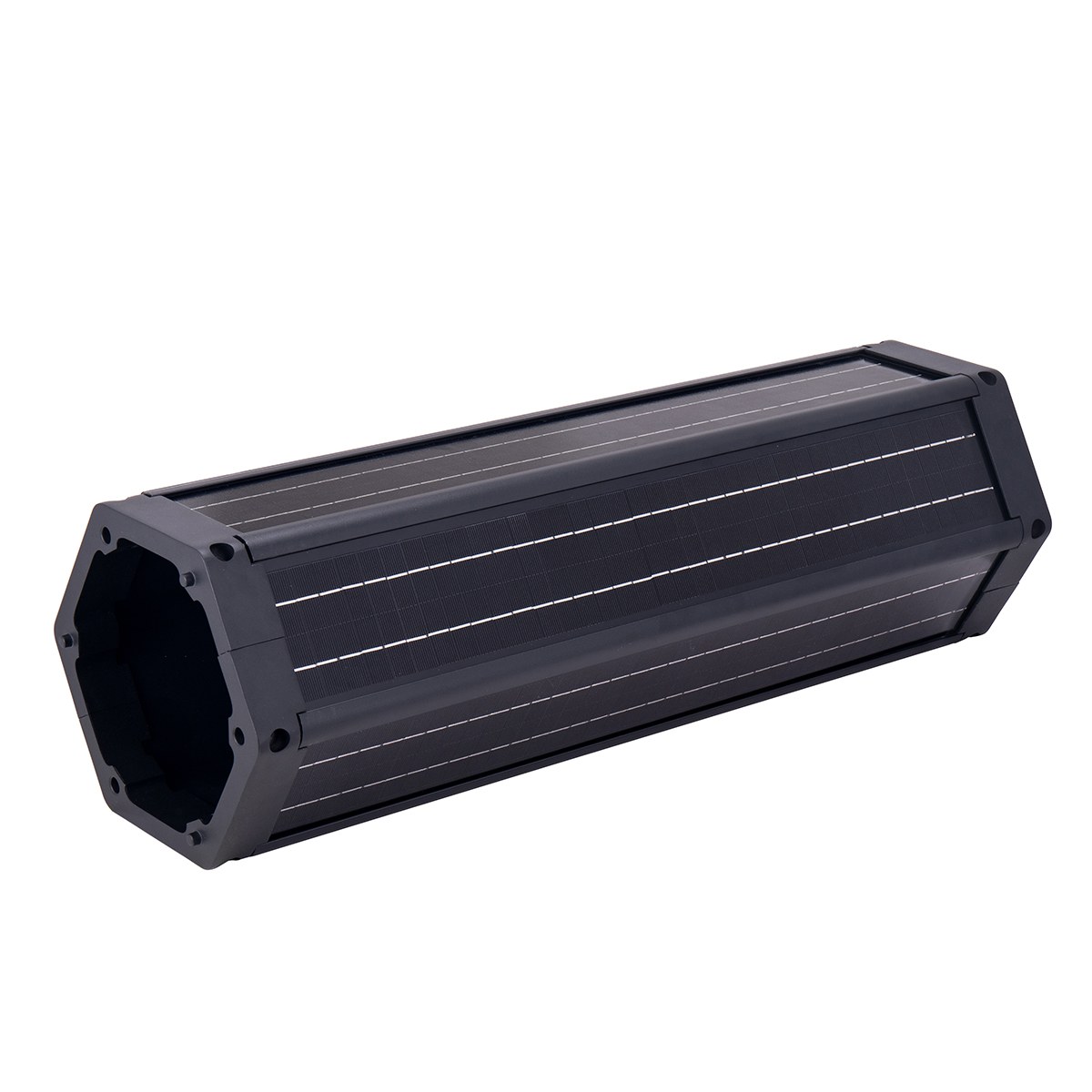

HEXAGON | Vertical Solar Cylinder

MC4 Connector | Detachable | Module Design
Model Number
Q140
Q200W
P.max
140W
200W
Vmp
18V/36V
18V/36V
Imp
7.78A/3.88A
11.1A/5.56A
Dimension
1560*228*200*mm
2060*228*200*mm
vertical solar street light
vertical solar led street light
vertical solar street light
vertical solar led street light

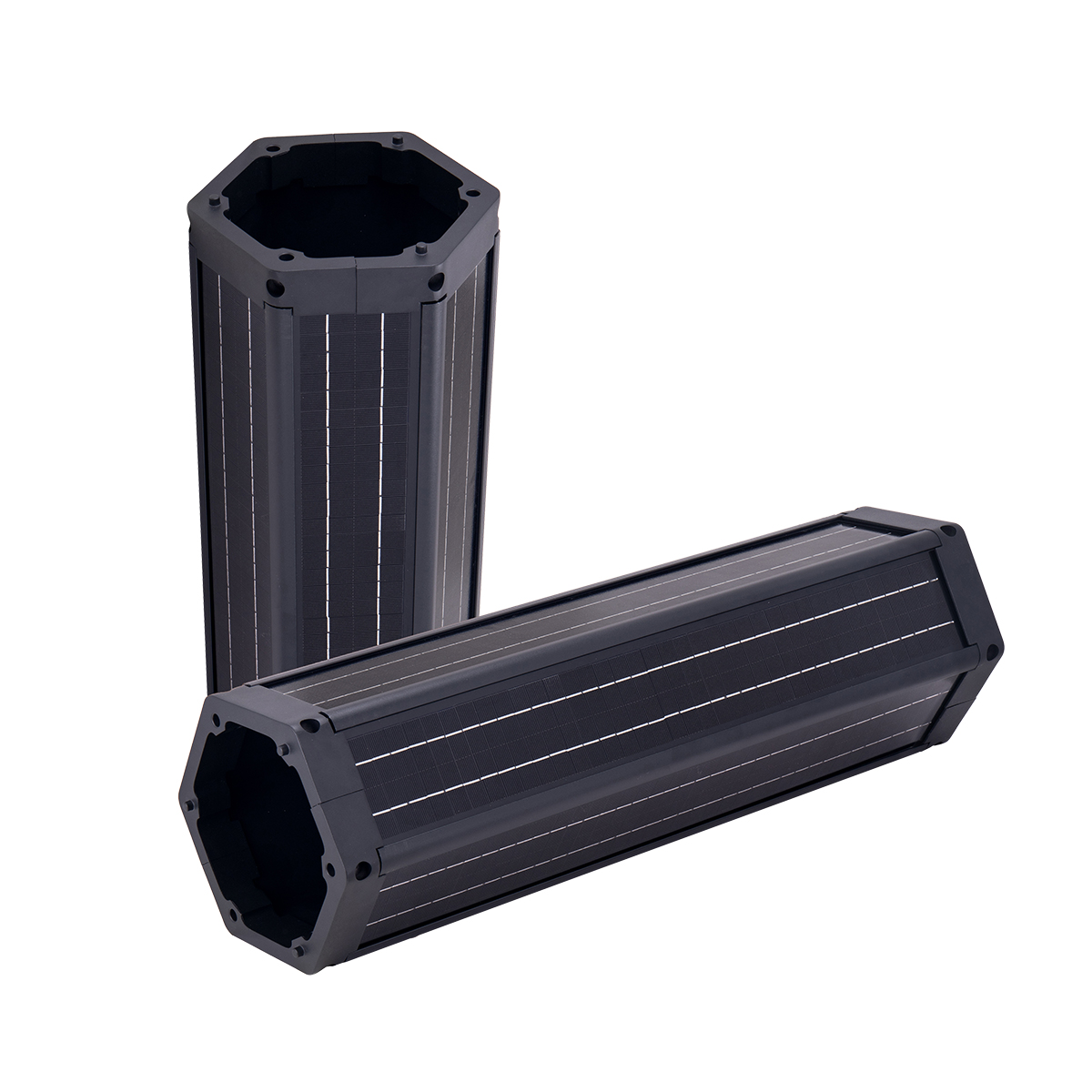

HEXAGON | Vertical Solar Cylinder

MC4 Connector | Detachable | Module Design
Model Number
Q140
Q200W
P.max
140W
200W
Vmp
18V/36V
18V/36V
Imp
7.78A/3.88A
11.1A/5.56A
Dimension
1560*228*200*mm
2060*228*200*mm
Send inquiry
More info

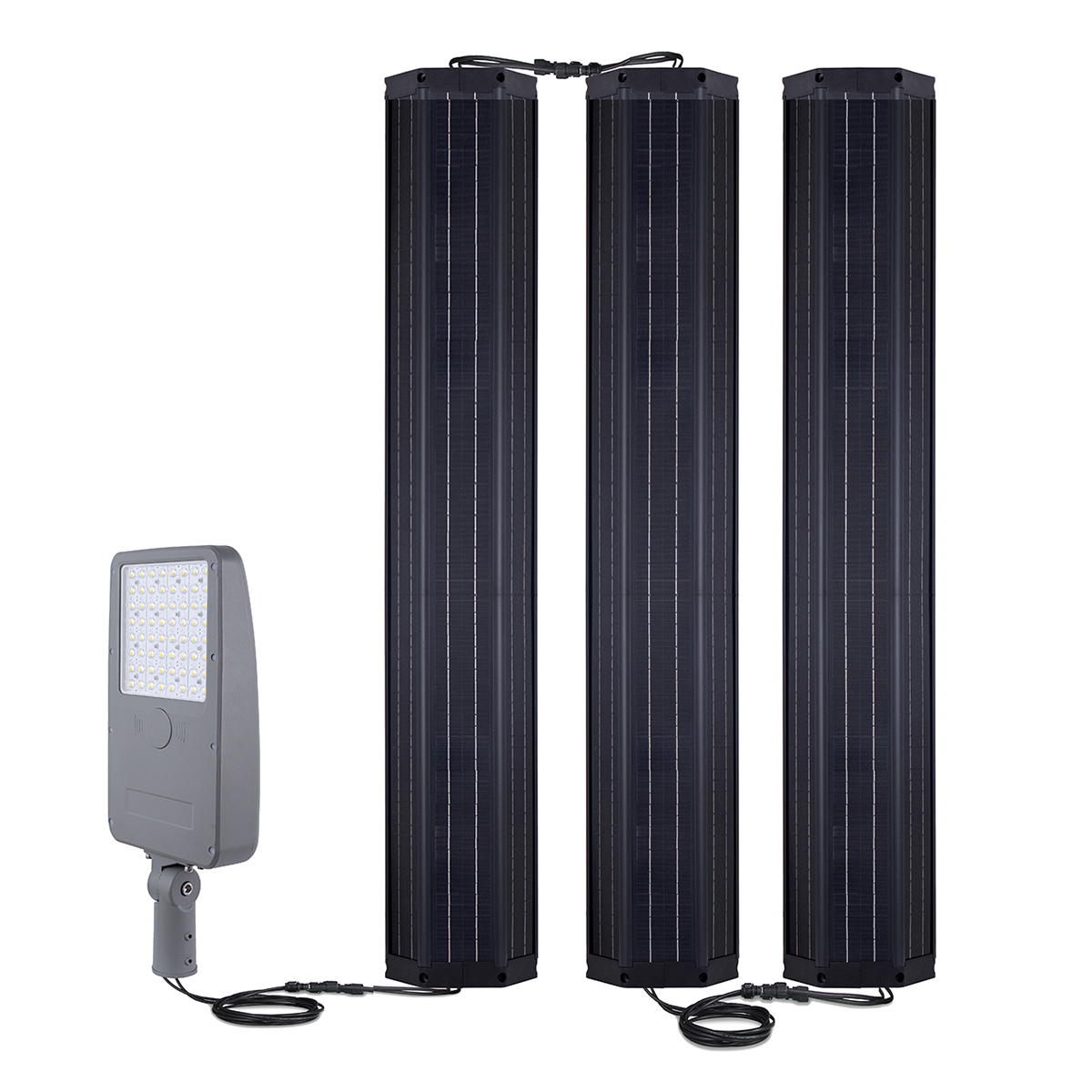

Vertical solar LED street light pole is an great innovation with latest technology. It adopts the vertical solar modules by surrounding the pole instead of regular solar panel installed on top.  Comparing with traditional solar led street light, it has a very cosmetic appearance in the same look as traidional street light.

Each vertical solar module adopts 6 pieces of slim mono-crystalline solar panel with high efficiency up to 22.5% and more than 20 years lifetime. Each slim solar panel are 18V/36V and 6 pieces slim solars are connected together in parallel connection.  Each vertical solar module contains two modules as master module which has 2 pairs of MC4 connectors and sub-module with 1 pair of MC4 connectors.  As the big part of vertical solar led street light, the vertical solar module is designed based on the modular conception which is supposed to be installed on any shape and new or old poles as customers requre.  And customer can freely combine different powers of solar panel according to the power consumption by series connection. for example 280W, 300W, 420W, 500W, 700W etc.

Key Componente & Advantages

Fit to Different Size
SolarWrap vertical solar cylinder is able to cater to different sizes and different shapes of mounting poles。
Snow Free in Winter
There is no risk of less or even no power generation from solar panel caused by snow accumulation in winter time.
Patented Design
Original designs of intellectual property are made by our team and protected with rich experience.
360° Full Day Charging
Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.
Dust & Sand Free
Sand & dust will not accumulate on the vertically installed solar panel. no need to clean the solar panels frequently
Modular Installation
It adopts modular concepts and uses male and female sliding installation structures to make the installation easier。
No Risk from Hailstone
There is no any risk of damage from hailstone which will smash the glass of solar panel.
Strong Wind Resistance
Smaller area facing wind, it has very great wind resistant performance up to 160km/H.
Aesthetics Appearance
The poles adopted vertical PV cylinder blend into environments perfectly without disturbing the beauty of the view.

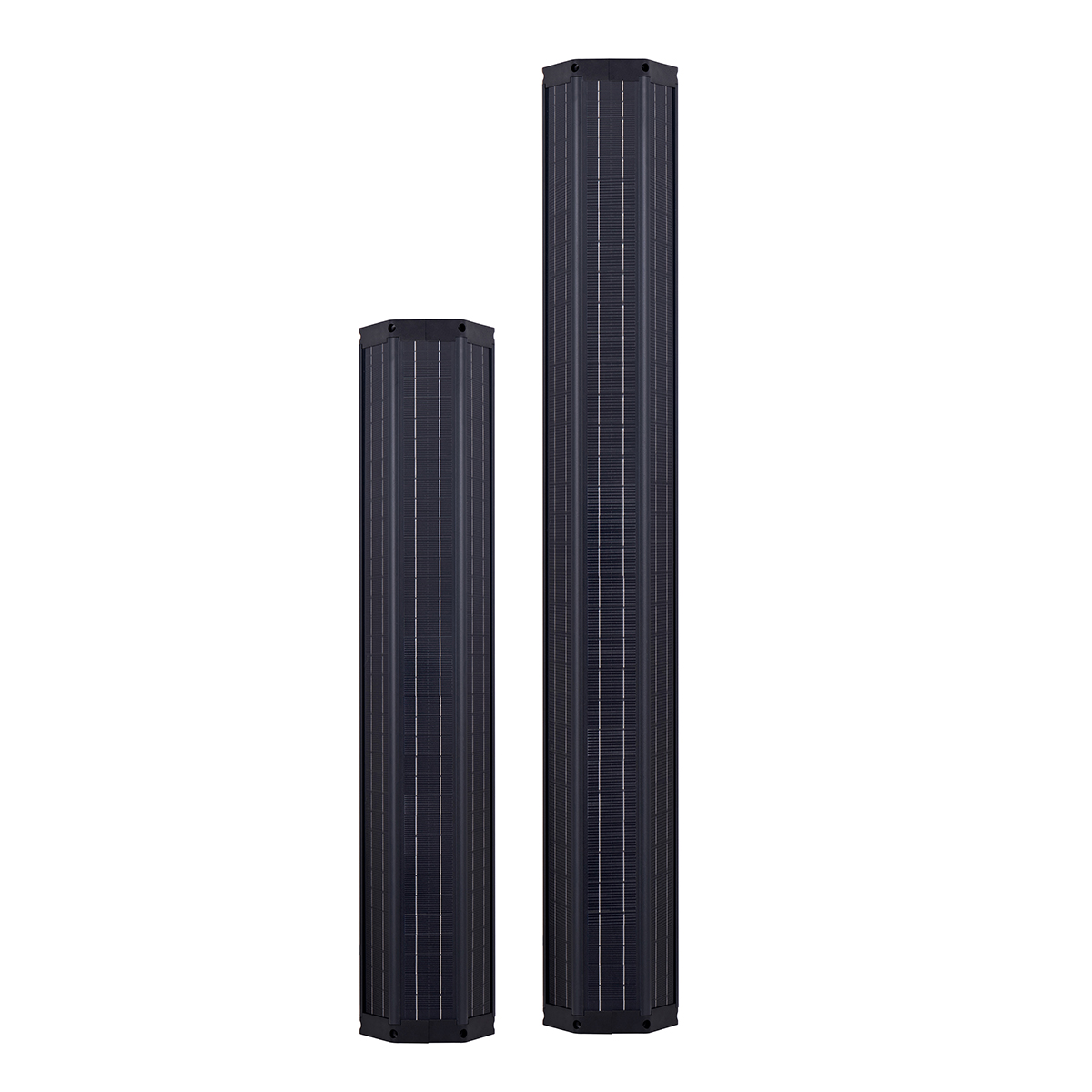

Main Specification

Model number
Q140
Q200
Patented Products
Yes
Power.max
140 Watts
200 Watts
Vmp
18V/36V
18V/36V
Imp
7.78A/3.88A
11.1A/5.56A
Dimension
1560*228*200*mm
2060*228*200mm
Profile Material
UPVC+Aluminium
Cable & Connector
2.5mm2 with MC4
Solar Cell Efficiency
22.50%
Solar Cell Type
MONO
Working Temp.
-30℃~+70℃
Warranty
5 years
Life Time
>20 years
N.G / G.W
21.50 /22.80 kg
25.30 /27.80 kg
Certificates
CE, ROHS, IP65

Main Specification

Model number
Patented Products
Power.max
Vmp
Imp
Dimension
Profile Material
Cable & Connector
Solar Cell Efficiency
Solar Cell Type
Working Temp.
Warranty
Life Time
N.G / G.W
Certificates
Q140
Q200
Yes
140 Watts
200 Watts
18V/36V
18V/36V
7.78A/3.88A
11.1A/5.56A
1560*228*200*mm
2060*228*200mm
UPVC+Aluminium
2.5mm2 with MC4
22.50%
MONO
-30℃~+70℃
5 years
>20 years
21.50 /22.80 kg
25.30 /27.80 kg
CE, ROHS, IP65

Download

Data Sheet
User Manual
Certificate

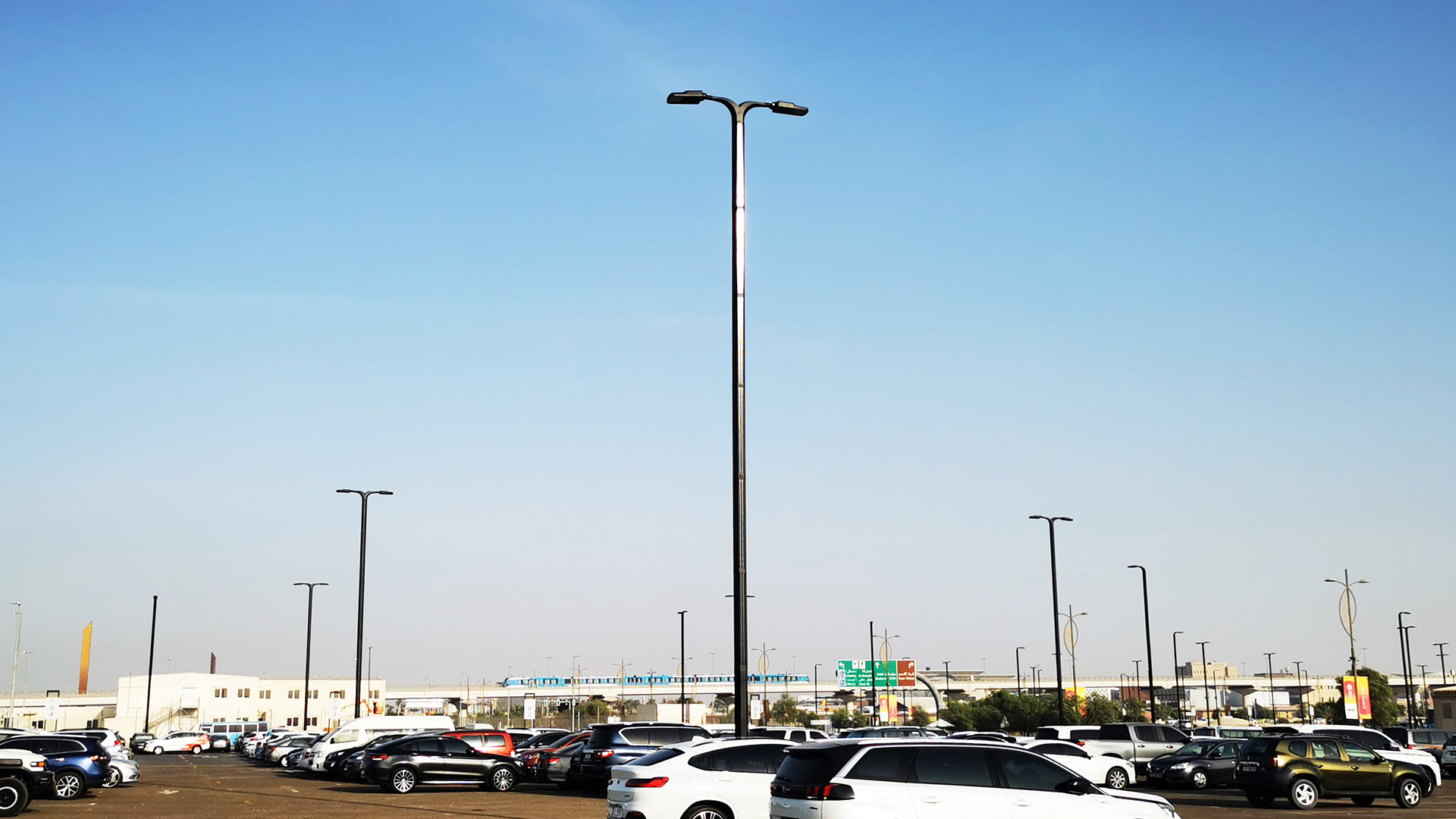

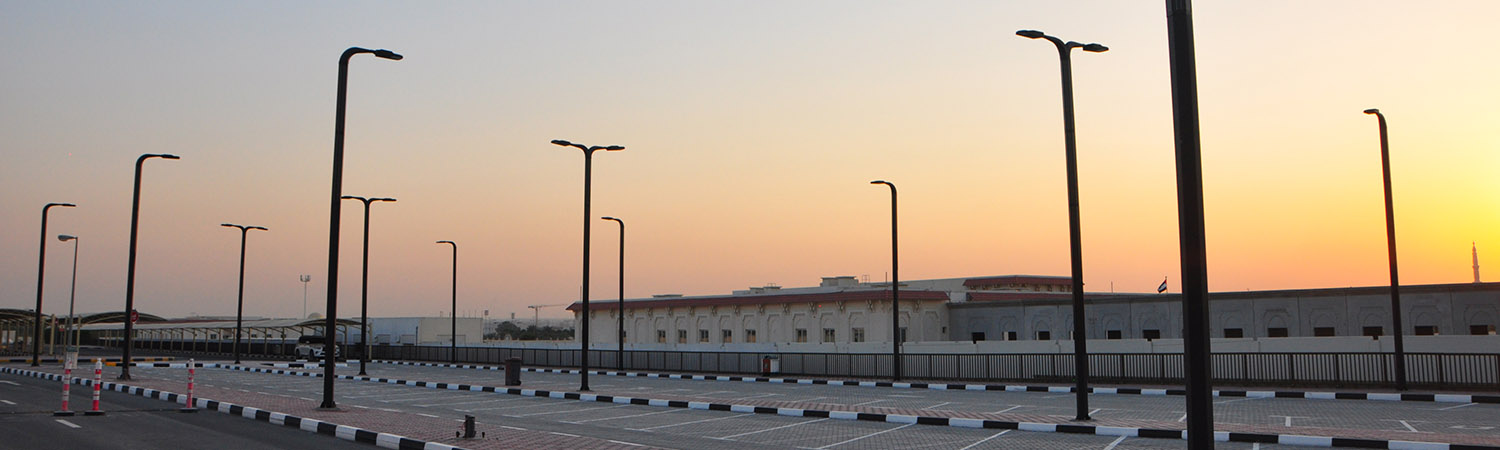

Projects Cases

Projects Cases

You May Ask

1.
What's the advantages of vertical solar cylinder?
Auroras's vertical solar module can avoid dust/snow accumulation, anti-wind resistant, and significantly lowers manpower in maintenance as well as aesthetical appearance.
2.
Can I just buy the vertical solar module individually without battery or controller?
Yes, Our solution is very flexible. You can buy the whole system or just the vertical solar model. If you purchase it separately, Please confirm the right voltage you need for your system.
3.
What is the diameter of the pole suitable for the hexagon vertical solar module?
75mm-120mm, the size is adjustable by the screws of mounting brackets.
4.

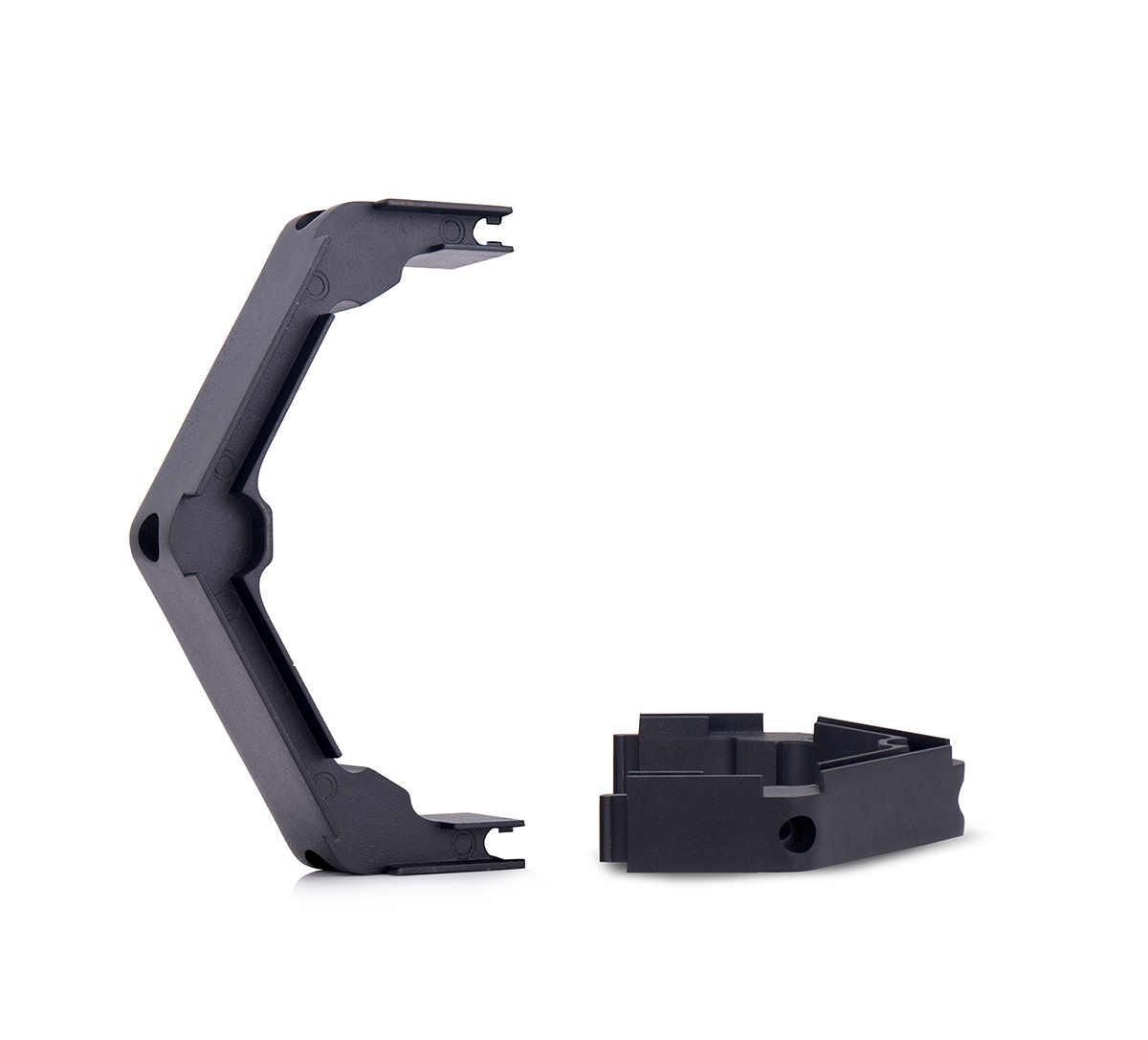

What is the screw's regular size in the module bracket?
The standard is M8*60mm.But we can provide longer or shorter screw according to the pole diameter.
5.
How are two vertical solar modules connected?
Between the two modules,we will provide the 30mm MC4 cable adapter. two modules are connected in parallel.
6.
Is there a hole on in the pole for the solar panel cable?
Yes, The external cable of solar panel need to go inside of pole from this hole and connect to controller & battery.
7.
Can i use 36V solar panel to charge 12V battery?
Yes. but you need to use MPPT solar charger instead of PWM solar charge controller.
8.
Can you provide the special drawing of pole to match your vertical solar module?
Yes, please contact our sales team.
9.
We need to install the solar cylinder near the sea side, will the product get rust?
We are able to make the powder coating in anti-corrosion.
10.
Can i arrange the pole from local market?
Yes, You can,  but please confirm the drawing of pole before you arrange it, so the sizes can match to each other.
