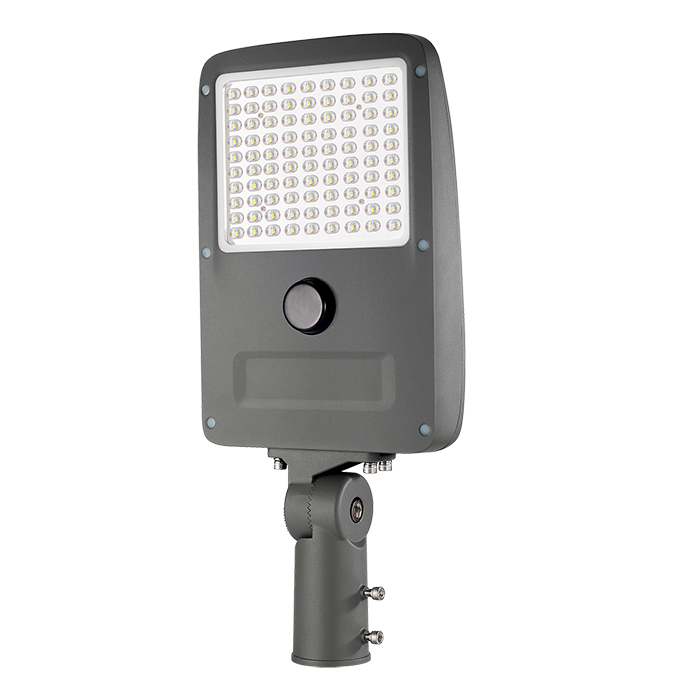

HELIOS | 30W 50W Solar Street Light

3 Days Backup | Motion Sensor | 170lm/W
Model Number
HELIOS T3
HELIOS T5
Luminous Flux
5,100lm
7,500lm
Battery Capacity
307WH 12.8V
460WH 12.8V
Charge Controller
Programmable MPPT
Solar Panel Min
80W 18V
100W 18V
all in one solar street light
aio solar street light
aio solar street light
solar street lighting
solar street pole light
all in one solar street light
aio solar street light
aio solar street light
solar street lighting
solar street pole light

HELIOS | 30W 50W Solar Street Light

3 Days Backup | Motion Sensor | 170lm/W
Model Number
HELIOS T3
HELIOS T5
Luminous Flux
5,100lm
7,500lm
Battery Capacity
307WH 12.8V
460WH 12.8V
Charge Controller
Programmable MPPT
Solar Panel Min
80W 18V
100W 18V
Send inquiry
More info

HELIOS solar led street light , as the glory pioneer of AIT series ( means battery and controller builtin of luminaire) high power solar led street lights in the world since 2016,  it is designed to simplify the complication of regular splited solar street light and enstrength and expand the flexibility of all in one solar street light.HELIOS is the most sucessful solar street light since 2016, more than 150,000pcs have been supplied to many countries or regions bring the easy-accessable lighting service to the people in need.


Thanks for the development of lithium battery and solar charging system as well as led light technology, Auroras is able to combine these great technology into one luminaire, which enable lighting up the night so easily and with the minimium cost.

Key Componente & Advantages

High Efficiency Solar Cell
Up to 22.5% high-efficiency solar cells, ensure high power charging efficiency.
Quality LiFePO4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.
MPPT Charge Controller
maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。
High Brightness LED
High brightness led enhances visibility and safety while providing energy-efficient
Solar Cables & MC4
Quality cable and connectors ensures optimal energy transfer, durability, and weather resistance.
Microwave Sensor
The motion sensor is adopted to save more energy of battery and extend the lifetime and more autonomy days

Main Specification

Model Name
HELIOS T3
HELIOS T5
HERMES T6
HERMES T8
Peak LED Power
30W
50W
60W
80W
Luminous Flux
5,100lm
7,500lm
10,200lm
13,600lm
LED Chips
128pcs SMD3030 1W
64pcs SMD5050 5W
CRI
>79
CCT Range
2700K~6500K
Beam Angle
Type I/II/III/III optional
Battery Cell
LiFePO4 32700 6000mAH
Battery Capacity
307WH 12.8V
460WH 12.8V
560WH 12.8V
768WH 12.8V
Charge Controller
Programmable MPPT
Solar Panel Min
80W 18V
100W 18V
120W 18V
160W 18V
Working Temp.
-15°C ~ 65°C
Cable & Connector
2.5MM2 Cable with MC4
Control Method
Automatica ON/OFF dusk to dawn
Motion Sensor
Microwave / PIR Infrared
Fixture Size
610*265*98mm
675*277*109mm
Installation Size
60mm
Fixture Color
Grey / Customized
Net / Gross Weight
9.8Kg / 10.7Kg
10.6Kg / 11.2Kg
14.3Kg / 15.3Kg
15.4Kg / 16.3Kg
Certificates
CE RoHS CB IECEE LM80 LM79 etc
Warranty
5 Years

Main Specification

Model Name
Peak LED Power
Luminous Flux
LED Chips
CRI
CCT Range
Beam Angle
Battery Cell
Battery Capacity
Charge Controller
Solar Panel Min
Working Temp.
Cable & Connector
Control Method
Motion Sensor
Fixture Size
Installation Size
Fixture Color
Net / Gross Weight
Certificates
Warranty
HELIOS T3
HELIOS T5
HERMES T6
HERMES T8
30W
50W
60W
80W
5,100lm
7,500lm
10,200lm
13,600lm
128pcs SMD3030 1W
64pcs SMD5050 5W
>79
2700K~6500K
Type I/II/III/III optional
LiFePO4 32700 6000mAH
307WH 12.8V
460WH 12.8V
560WH 12.8V
768WH 12.8V
Programmable MPPT
80W 18V
100W 18V
120W 18V
160W 18V
-15°C ~ 65°C
2.5MM2 Cable with MC4
Automatica ON/OFF dusk to dawn
Microwave / PIR Infrared
610*265*98mm
675*277*109mm
60mm
Grey / Customized
9.8Kg / 10.7Kg
10.6Kg / 11.2Kg
14.3Kg / 15.3Kg
15.4Kg / 16.3Kg
CE RoHS CB IECEE LM80 LM79 etc
5 Years

Download

Data Sheet
User Manual
Certificate
1.
Datasheet
*.rar
1.
User manual
*.rar
1.
Certificates of HELIOS
*.rar

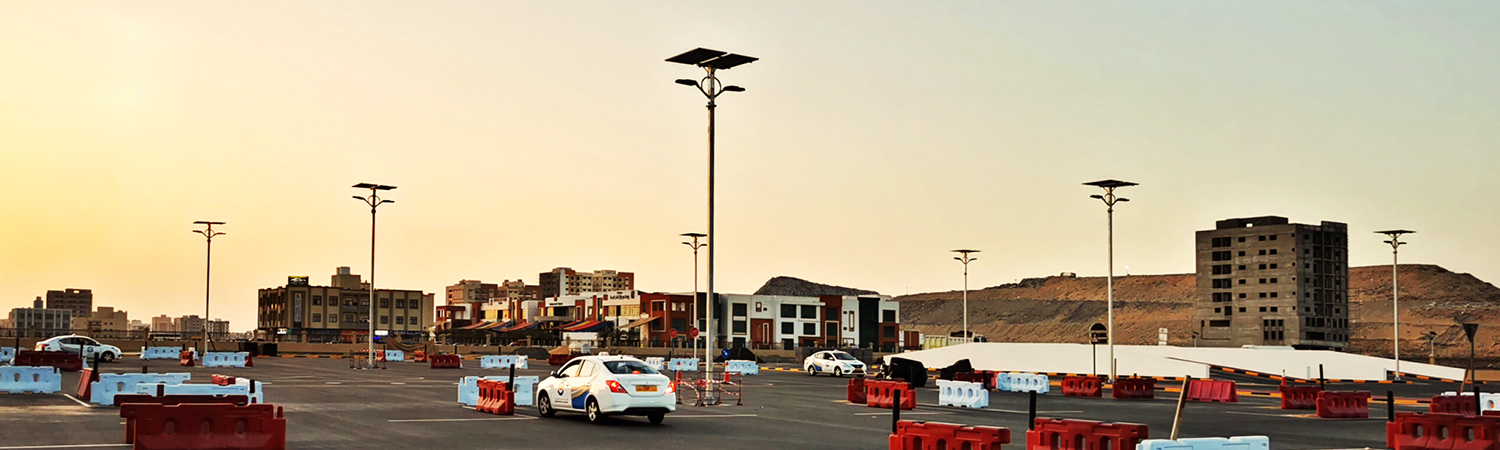

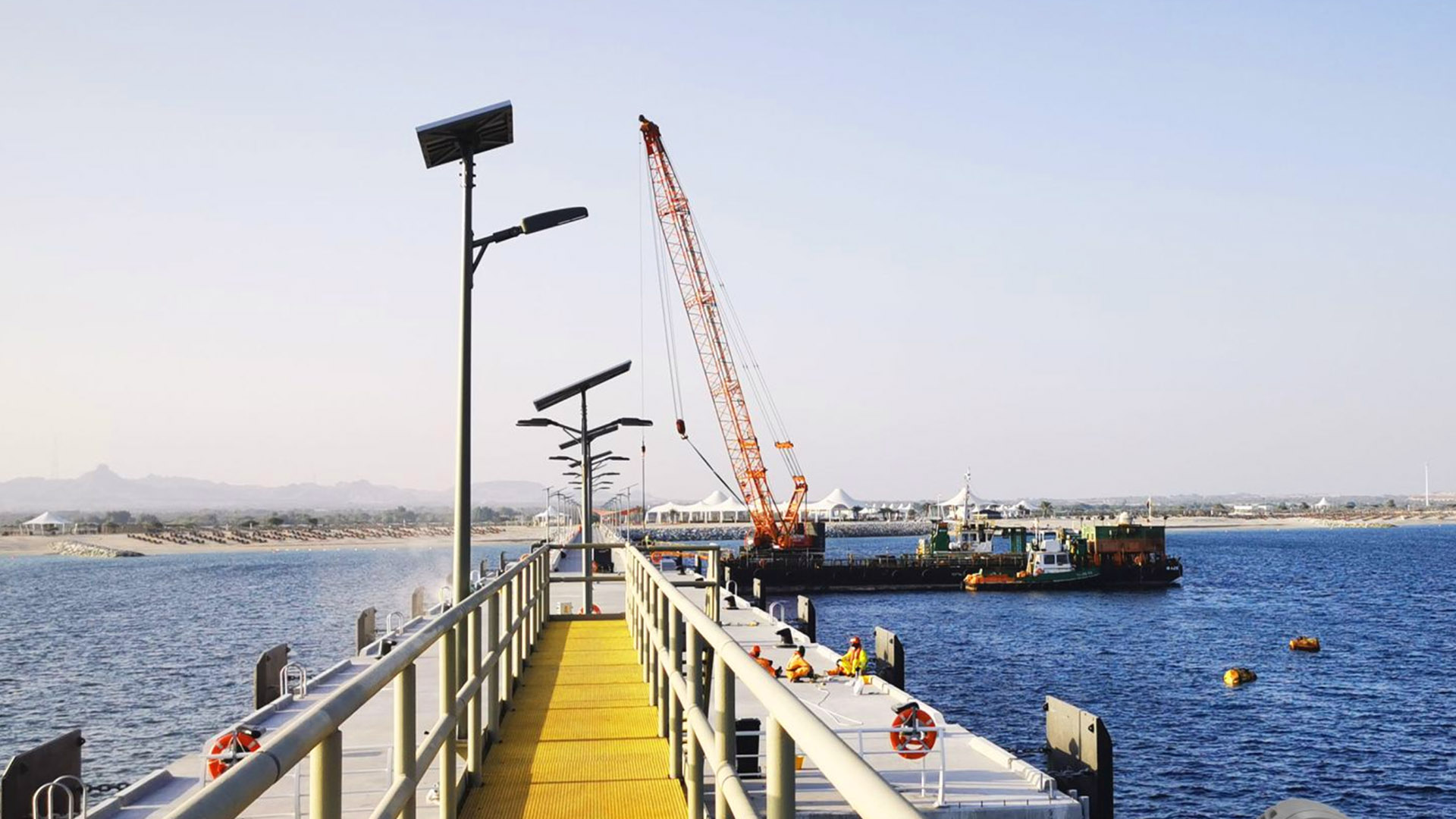

Projects Cases

Projects Cases

You May Ask

1.
What is the type of solar street light battery?
 It is LiFePO4 battey, brand new 32700 or 32140 cell
2.
Can I program the light dimming accroding to different period?
Aurora's solar street lights can be programmed to adjust various settings, including LED power, working modes, and sensor modes, providing flexibility to meet diverse project requirements.
3.
What's the LED power of all-in-two solar street lights?
Auroras has three models Helios, Hermes, Thor, available from 20W-120W, adopting different battery capacity and charge controller for different power range. the power can be reprogrammed by remote if needed.
4.
What is the working temp of Hermes battery?
Regular -20℃ to 65℃. Low temperatures range from -40℃ to 65℃.
5.
Is there any other led lens with different lighting angles?
All three models including HELIOS, HERMES and THOR are adopting modular led lens 50*50mm, it is compatible with the regular led lens on the market, The lens can be changed easily with the required lighting distribution performance.
6.
What is the brand of the LED chips of AIT solar light ?
It adopts ultra-high brightness of Philips Lumileds SMD5050 chiips.
7.
Is the angle of the light head adjustable?
Yes,it can be adjusted up and down 90 degrees.
8.
What's the default working mode of All in Two solar street light?
3 hours 100%+4 hours 50%+5 hours 30%
9.
What's the pole height range that your AIT solar street light can suit?
The pole range can be 4-12m around, higher poles will require higher power solar lights.
10.
Can the light be surface anti-corrosion?
Yes, it can be customized with anti-corrosion powder.
