HERMES | 60W 80W Solar Street Light

LEDil Optics | 170lm/W | MPPT Controller
Model Number
HERMES T6
HERMES T8
Peak LED Power
60W
80W
Luminous Flux
10,200lm
13600lm
Battery Capacity
560WH 12.8V
768WH 12.8V
Solar Panel Min
120W 18V
180W 18V
solar street light for high way
integrated solar street light
all in two solar street light
smart control solar street light
solar led street light
solar street light for high way
integrated solar street light
all in two solar street light
smart control solar street light
solar led street light

HERMES | 60W 80W Solar Street Light

LEDil Optics | 170lm/W | MPPT Controller
Model Number
HERMES T6
HERMES T8
Peak LED Power
60W
80W
Luminous Flux
10,200lm
13600lm
Battery Capacity
560WH 12.8V
768WH 12.8V
Solar Panel Min
120W 18V
180W 18V
Send inquiry
More info

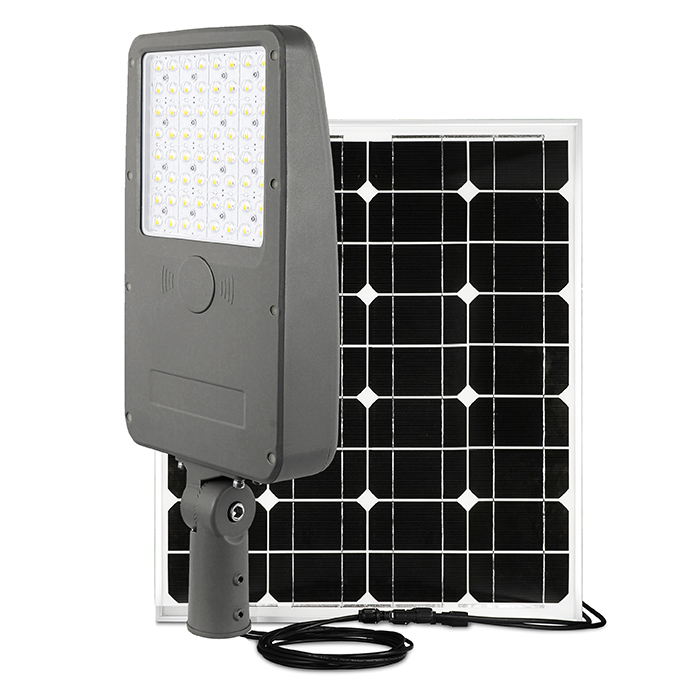

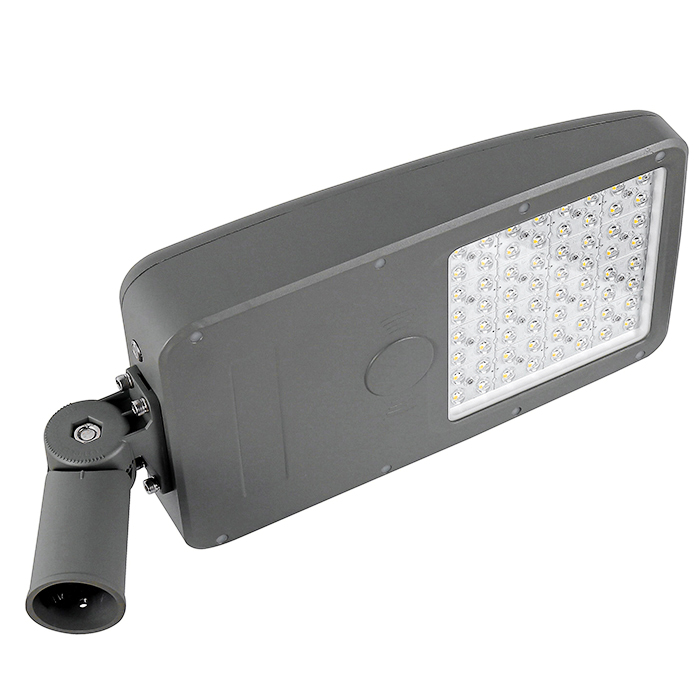

HERMES solar-led street light is dedicated to providing continuous and ultra-high brightness output for the main road market.  It build-in big capacity of LifePO4 battery pack up to 768WH max whose lifetime could reach to more than 10 years in energy-saving mode, and It equips 64pcs of SMD5050 ( 5W/led) as lighting engine, it is driven by constant voltage and lower current in order to get superb high luminous output up to 180lm/W.  HERMES is a perfect model for poles from 6 meters up to 10 meters.

HERMES is more designed for the high-end projects which have a high requirement in lighting distribution, because of this, It adopts the top quality LED optics from LEDil, there are a couple of different lighting patterns available to meet different requirements on road width, the height of the pole, the distance between poles, etc.  Using the best and suitable LED optics, it can reach the best lighting performance with the lowest budgets and other costs. Customers can use the suitable power of solar panels according to their local solar radiation, solar light heads are connected to any solar panel by universal MC4 connectors easily.

Key Componente & Advantages

High Efficiency Solar Cell
Up to 22.5% high-efficiency solar cells, ensure high power charging efficiency.

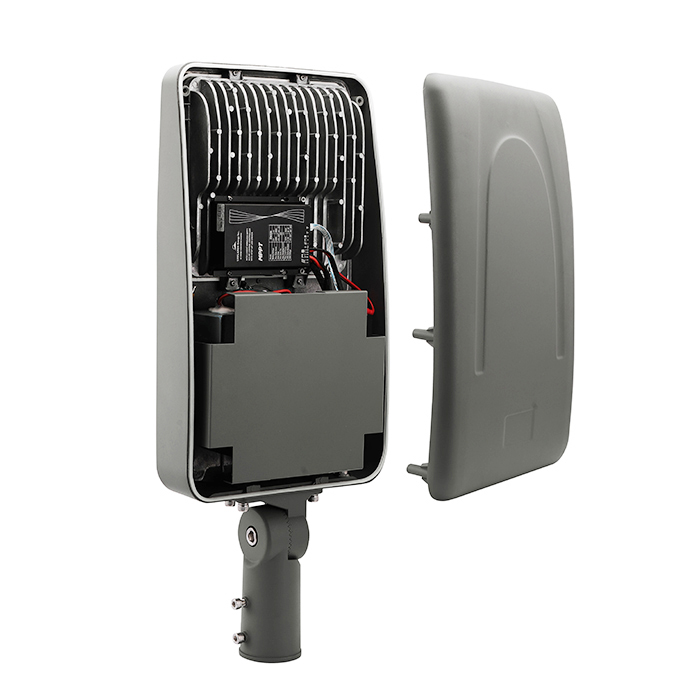

Quality LiFePO4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.
MPPT Charge Controller
maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。

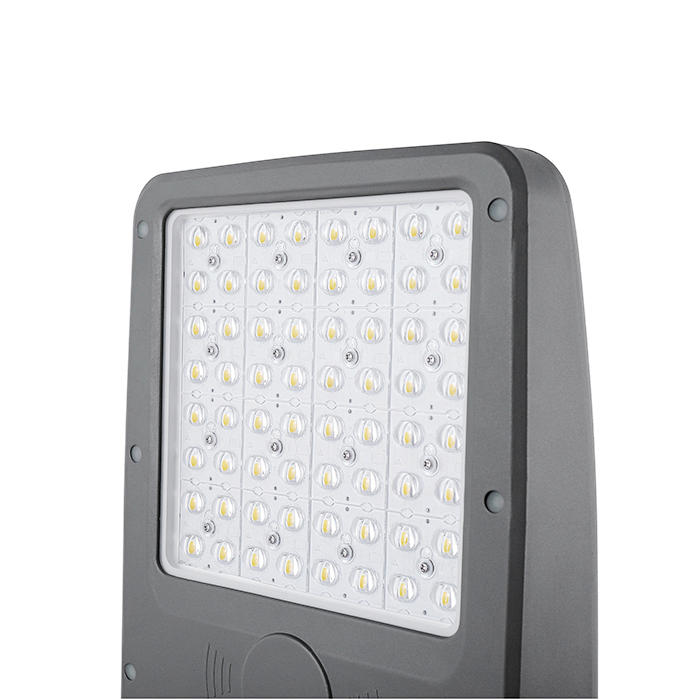

High Brightness LED
High brightness led enhances visibility and safety while providing energy-efficient
Microwave Sensor
The motion sensor is adopted to save more energy of battery and extend the lifetime and more autonomy days
Robust Design
Robust design of light fixture provides superior durability, corrosion resistance, and heat dissipation.

Main Specification

Model Name
HERMES T6
HERMES T8
THOR T10
THOR T12
Peak LED Power
60W
80W
100W
120W
LED Chips
SMD5050 5W
Luminous Flux
10,200lm
13,600lm
16,00lm
20,400lm
CRI
>79
CCT Range
2700K~6500K
Beam Angle
Type I/II/III/III optional
Battery Cell
LiFePO4 32700 6000mAH
Battery Capacity
560WH 12.8V
768WH 12.8V
921WHJ 25.6V
1075WH 25.6V
Charge Controller
Programmable MPPT
Solar Panel Min
120W 18V
160W 18V
Cable & Connector
2.5MM2 Cable with MC4
Control Method
Automatica ON/OFF dusk to dawn
Motion Sensor
Microwave / PIR Infrared
Fixture Size
675*277*109mm
Installation Size
60mm
Fixture Color
Grey / Customized
Net / Gross Weight
14.3Kg / 15.3Kg
15.4Kg / 16.3Kg
Certificates
CE RoHS CB IECEE LM80 LM79
Warranty
5 Years

Main Specification

Model Name
Peak LED Power
LED Chips
Luminous Flux
CRI
CCT Range
Beam Angle
Battery Cell
Battery Capacity
Charge Controller
Solar Panel Min
Cable & Connector
Control Method
Motion Sensor
Fixture Size
Installation Size
Fixture Color
Net / Gross Weight
Certificates
Warranty
HERMES T6
HERMES T8
THOR T10
THOR T12
60W
80W
100W
120W
SMD5050 5W
10,200lm
13,600lm
16,00lm
20,400lm
>79
2700K~6500K
Type I/II/III/III optional
LiFePO4 32700 6000mAH
560WH 12.8V
768WH 12.8V
921WHJ 25.6V
1075WH 25.6V
Programmable MPPT
120W 18V
160W 18V
2.5MM2 Cable with MC4
Automatica ON/OFF dusk to dawn
Microwave / PIR Infrared
675*277*109mm
60mm
Grey / Customized
14.3Kg / 15.3Kg
15.4Kg / 16.3Kg
CE RoHS CB IECEE LM80 LM79
5 Years

Download

Data Sheet
User Manual
Certificate
1.
Certificates of HERMES
*.rar

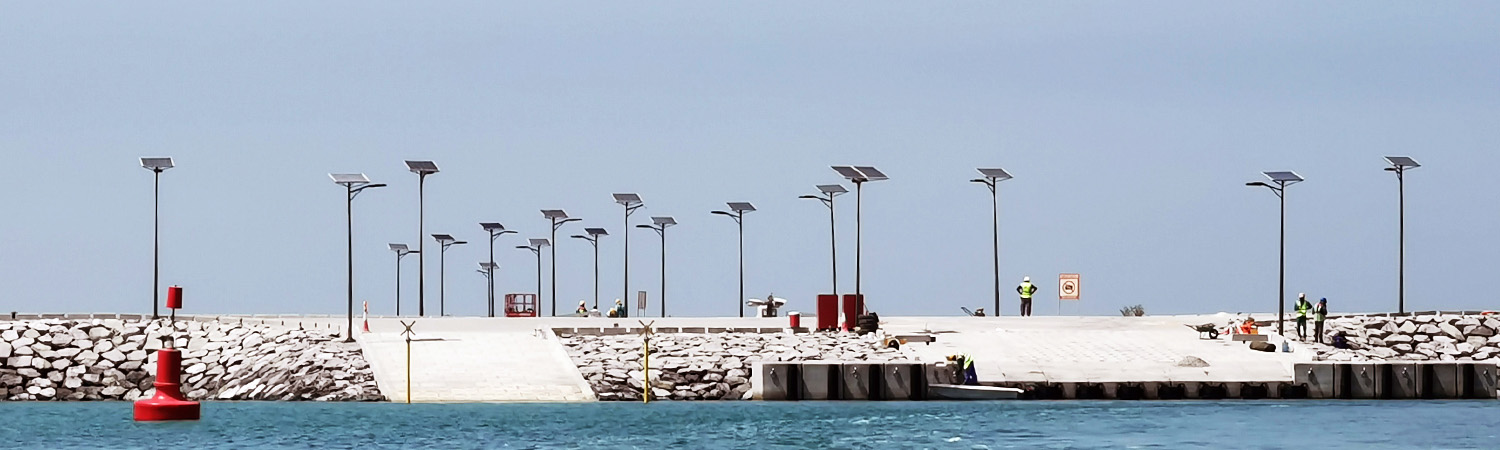

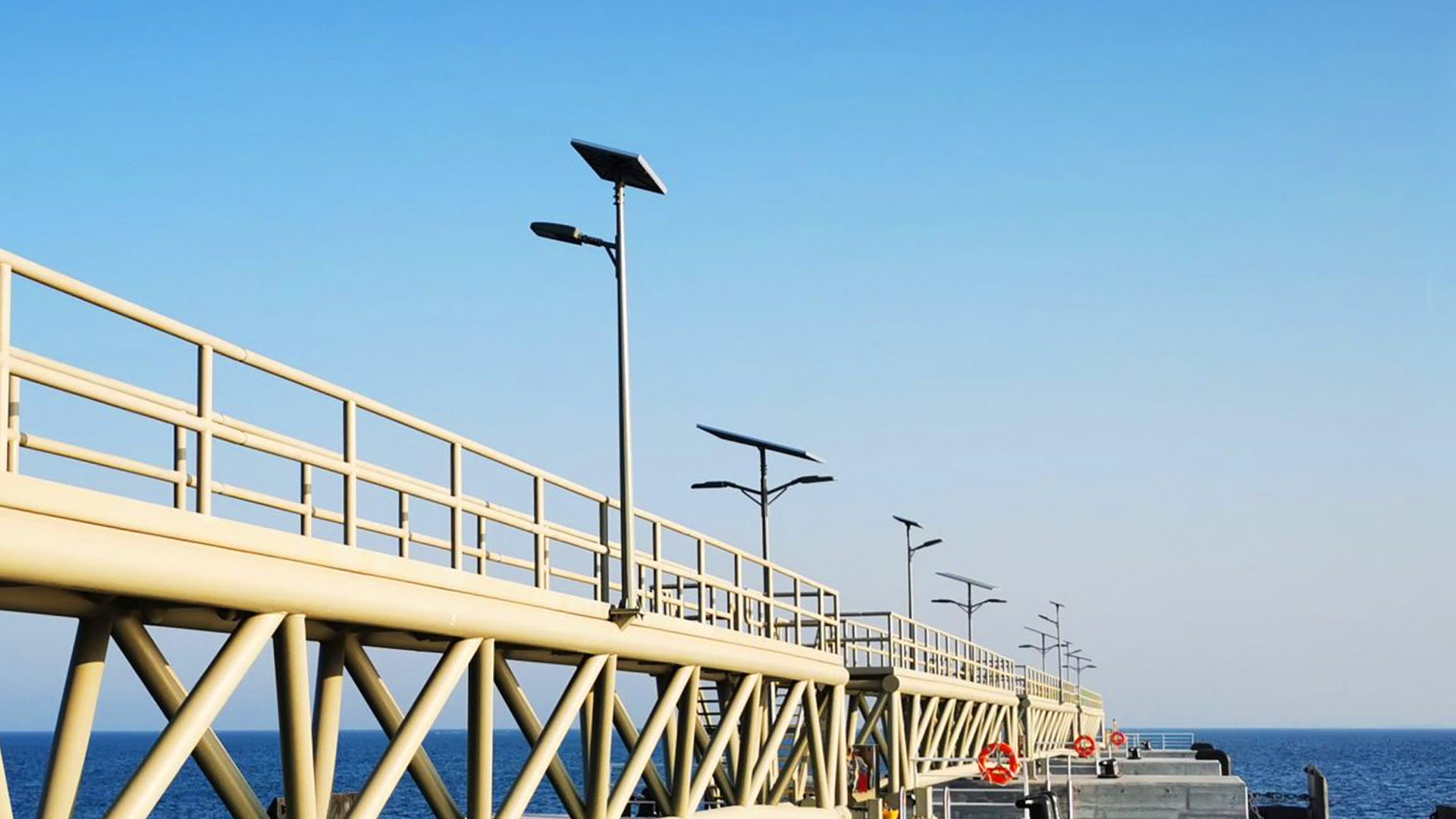

Projects Cases

Projects Cases

You May Ask

1.
What is the type of solar street light battery?
 It is LiFePO4 battey, brand new 32700 or 32140 cell
2.
Can I program the light dimming accroding to different period?
Aurora's solar street lights can be programmed to adjust various settings, including LED power, working modes, and sensor modes, providing flexibility to meet diverse project requirements.
3.
What's the LED power of all-in-two solar street lights?
Auroras has three models Helios, Hermes, Thor, available from 20W-120W, adopting different battery capacity and charge controller for different power range. the power can be reprogrammed by remote if needed.
4.
What is the working temp of Hermes battery?
Regular -20℃ to 65℃. Low temperatures range from -40℃ to 65℃.
5.
Is there any other led lens with different lighting angles?
All three models including HELIOS, HERMES and THOR are adopting modular led lens 50*50mm, it is compatible with the regular led lens on the market, The lens can be changed easily with the required lighting distribution performance.
6.
What is the brand of the LED chips of AIT solar light ?
It adopts ultra-high brightness of Philips Lumileds SMD5050 chiips.
7.
Is the angle of the light head adjustable?
Yes,it can be adjusted up and down 90 degrees.
8.
What's the default working mode of All in Two solar street light?
3 hours 100%+4 hours 50%+5 hours 30%
9.
What's the pole height range that your AIT solar street light can suit?
The pole range can be 4-12m around, higher poles will require higher power solar lights.
10.
Can the light be surface anti-corrosion?
Yes, it can be customized with anti-corrosion powder.
