THOR | 100W 120W Solar Street Light

Battery Builtin | 170lm/W | 5 Years Warranty
Model Number
THOR T10
THOR T12
Peak LED Power
100W
120WW
Luminous Flux
16,00lm
20,400lm
Battery Capacity
921WH 25.6V
1075WH 25.6V
Soalr Panel
200W 36V
260W 36V
100w solar street light
solar street lighting
5 years solar street light
riyadh solar street light
solar street lighting pole
solar highway street light
1075wh solar street light
100w solar street light
solar street lighting
5 years solar street light
riyadh solar street light
solar street lighting pole
solar highway street light
1075wh solar street light

THOR | 100W 120W Solar Street Light

Battery Builtin | 170lm/W | 5 Years Warranty
Model Number
THOR T10
THOR T12
Peak LED Power
100W
120WW
Luminous Flux
16,00lm
20,400lm
Battery Capacity
921WH 25.6V
1075WH 25.6V
Soalr Panel
200W 36V
260W 36V
Send inquiry
More info

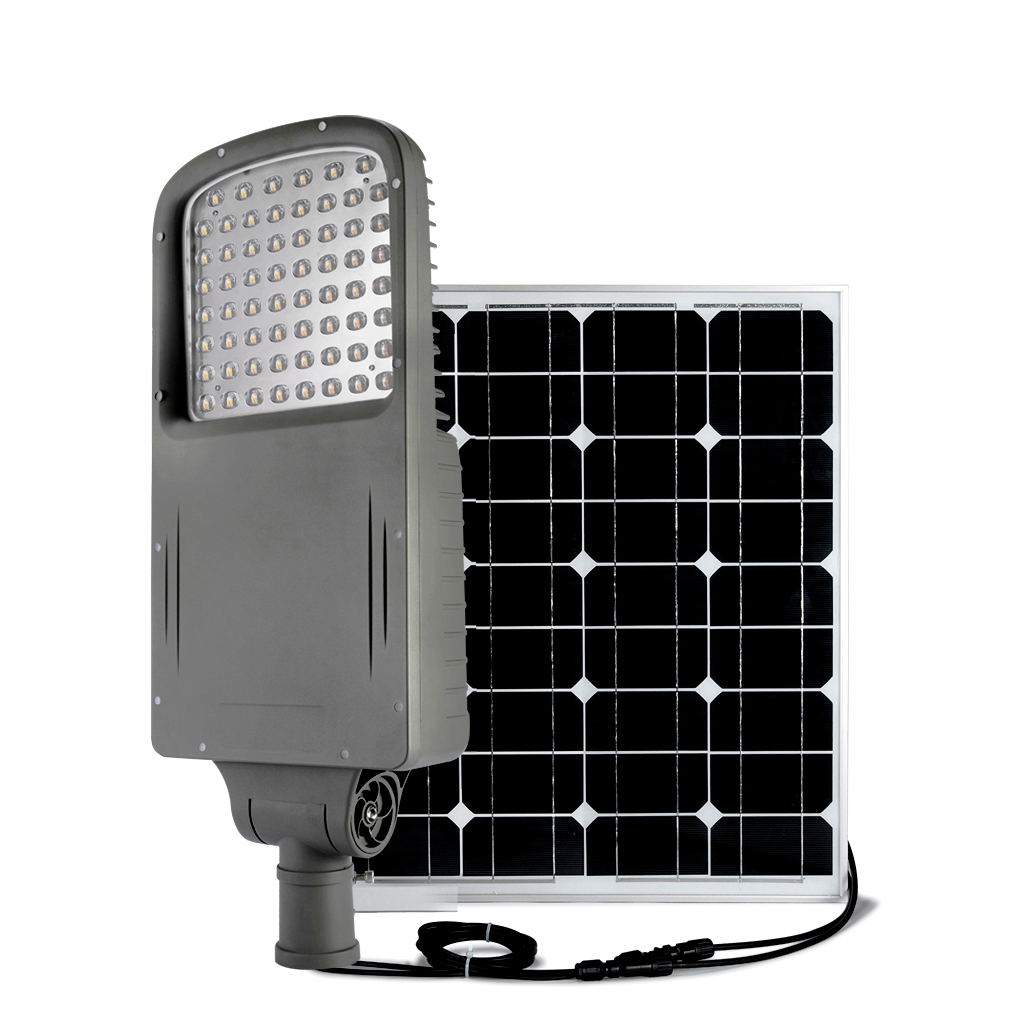

THOR solar led street light head was developed to the fulfil application of true solar led street light for highway lighting and main road lighting which requires ultra-high brightness and continuous long period output.

The LiFePO4 battery pack and high-efficiency MPPT solar charge controller are built inside of the light fixture. The lifetime of liFePO4 battery pack is more than 2000 cycles with D.O.D 100%, while D.O.D of the default setting of THOR light is only 60% which means the lifetime is more than 3000 cycles about 8~10 years. As auroras's default setting, THOR light can working high full power for first 6 hours and with 50% power for another 6 hours as full night operation in order to save more solar power in battery and also it helps to extend the lifetime of the battery. The max input current is 15A~20A, it guarantees the whole system could work with very stable performance even in very challenging conditions. the lighting power and program could be adjusted easily with remote control.

Key Componente & Advantages

High Efficiency Solar Cell
Up to 22.5% high-efficiency solar cells, ensure high power charging efficiency.
Quality LiFePO4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.
MPPT Charge Controller
maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。
High Brightness LED
High brightness led enhances visibility and safety while providing energy-efficient
Solar Cables & MC4
Quality cable and connectors ensures optimal energy transfer, durability, and weather resistance.
Robust Design
Robust design of light fixture provides superior durability, corrosion resistance, and heat dissipation.

Main Specification

Model Name
THOR T10
THOR T12
HELIOS T3
HELIOS T5
Peak LED Power
100W
120W
30W
50W
Luminous Flux
16,800lm
20,400lm
5,100lm
7,500lm
CRI
>79
CCT Range
2700K~6500K
Beam Angle
Type I/II/III/III optional
Battery Cell
LiFePO4 32700 6000mAH
Battery Capacity
921WH 25.6V
1075WH 25.6V
307WH 12.8V
460WH 12.8V
Charge Controller
Programmable MPPT
Solar Panel Min
200W 36V
260W 36V
Working Temp.
-15°C ~ 65°C
Cable & Connector
2.5MM2 Cable with MC4
Control Method
Automatica ON/OFF dusk to dawn
Motion Sensor
N/G
Microwave sensor
Fixture Size
800*310*116mm
610*265*98mm
Installation Size
60mm
Fixture Color
Grey / Customized
Net / Gross Weight
20.4Kg/21.3Kg
21.8Kg/22.6Kg
9.8Kg / 10.7Kg
10.6Kg / 11.2Kg
Certificates
CE RoHS CB IECEE LM80 LM79
Warranty
5 Years

Main Specification

Model Name
Peak LED Power
Luminous Flux
CRI
CCT Range
Beam Angle
Battery Cell
Battery Capacity
Charge Controller
Solar Panel Min
Working Temp.
Cable & Connector
Control Method
Motion Sensor
Fixture Size
Installation Size
Fixture Color
Net / Gross Weight
Certificates
Warranty
THOR T10
THOR T12
HELIOS T3
HELIOS T5
100W
120W
30W
50W
16,800lm
20,400lm
5,100lm
7,500lm
>79
2700K~6500K
Type I/II/III/III optional
LiFePO4 32700 6000mAH
921WH 25.6V
1075WH 25.6V
307WH 12.8V
460WH 12.8V
Programmable MPPT
200W 36V
260W 36V
-15°C ~ 65°C
2.5MM2 Cable with MC4
Automatica ON/OFF dusk to dawn
N/G
Microwave sensor
800*310*116mm
610*265*98mm
60mm
Grey / Customized
20.4Kg/21.3Kg
21.8Kg/22.6Kg
9.8Kg / 10.7Kg
10.6Kg / 11.2Kg
CE RoHS CB IECEE LM80 LM79
5 Years

Download

Data Sheet
User Manual
Certificate
1.
Certificates of THOR
*.rar

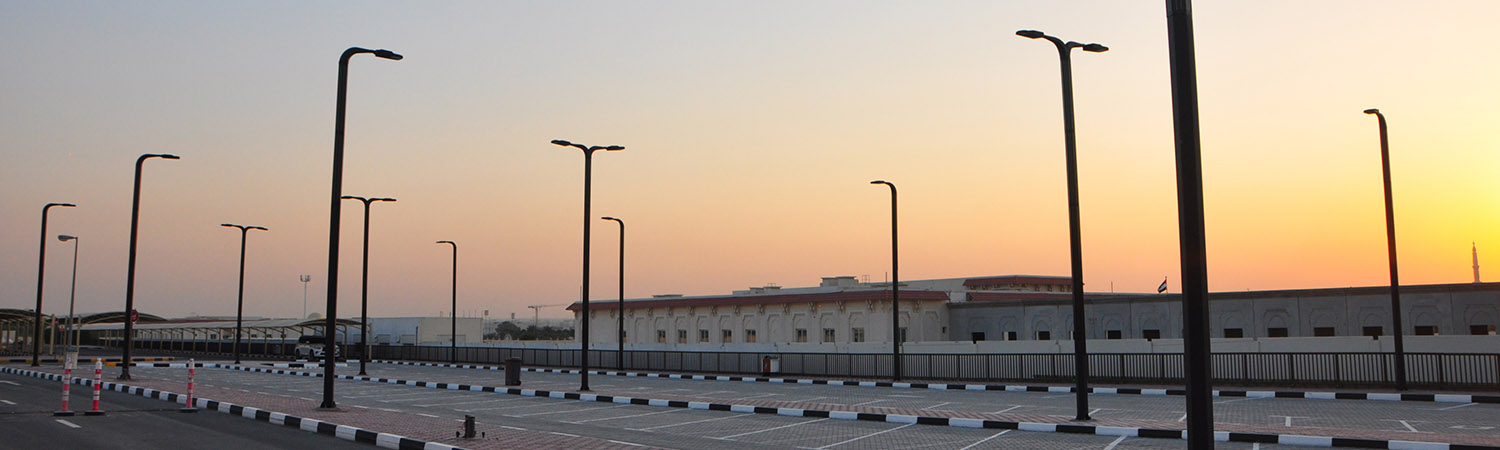

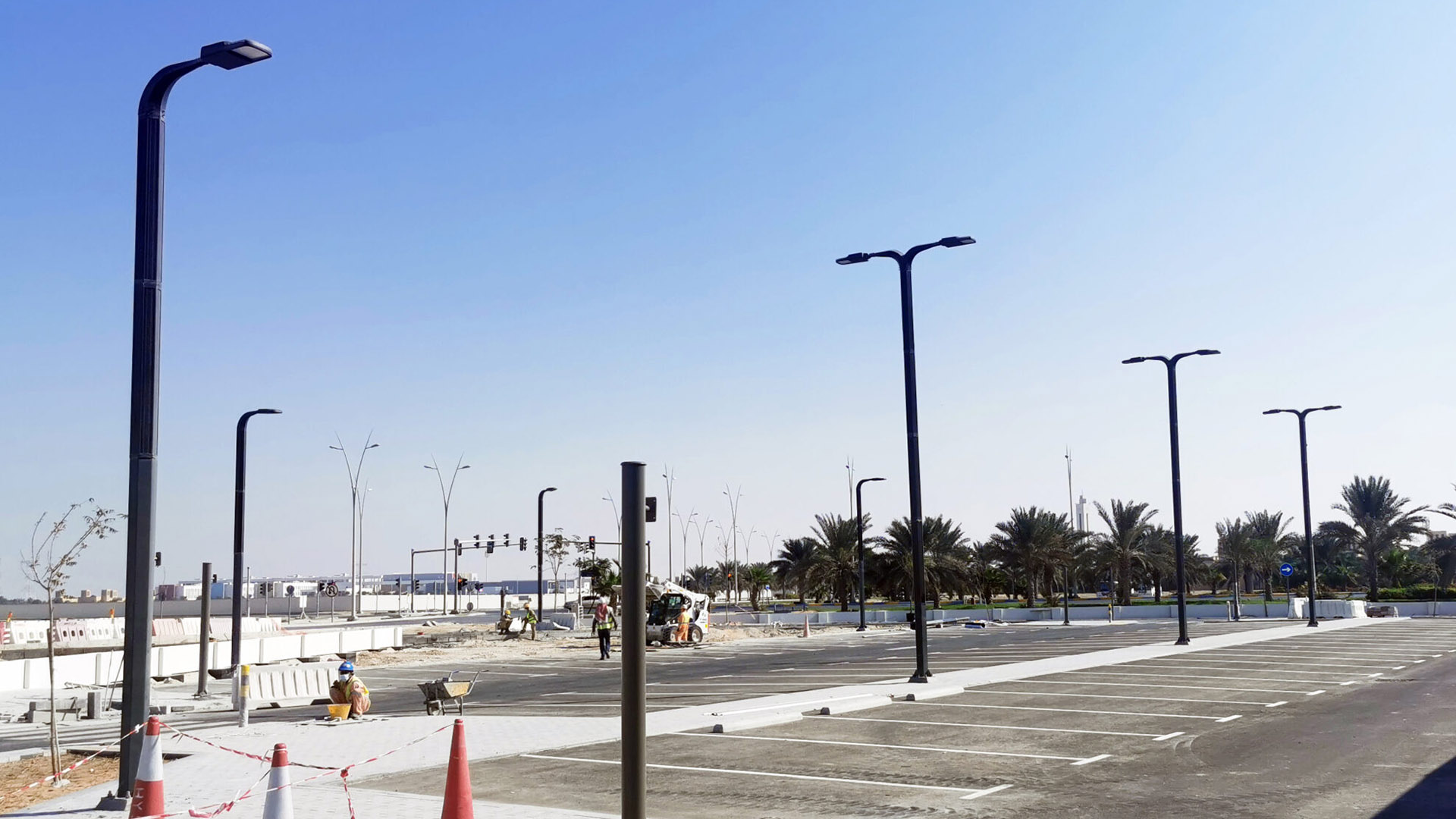

Projects Cases

Projects Cases

You May Ask

1.
What is the type of solar street light battery?
 It is LiFePO4 battey, brand new 32700 or 32140 cell
2.
Can I program the light dimming accroding to different period?
Aurora's solar street lights can be programmed to adjust various settings, including LED power, working modes, and sensor modes, providing flexibility to meet diverse project requirements.
3.
What's the LED power of all-in-two solar street lights?
Auroras has three models Helios, Hermes, Thor, available from 20W-120W, adopting different battery capacity and charge controller for different power range. the power can be reprogrammed by remote if needed.
4.
What is the working temp of Hermes battery?
Regular -20℃ to 65℃. Low temperatures range from -40℃ to 65℃.
5.
Is there any other led lens with different lighting angles?
All three models including HELIOS, HERMES and THOR are adopting modular led lens 50*50mm, it is compatible with the regular led lens on the market, The lens can be changed easily with the required lighting distribution performance.
6.
What is the brand of the LED chips of AIT solar light ?
It adopts ultra-high brightness of Philips Lumileds SMD5050 chiips.
7.
Is the angle of the light head adjustable?
Yes,it can be adjusted up and down 90 degrees.
8.
What's the default working mode of All in Two solar street light?
3 hours 100%+4 hours 50%+5 hours 30%
9.
What's the pole height range that your AIT solar street light can suit?
The pole range can be 4-12m around, higher poles will require higher power solar lights.
10.
Can the light be surface anti-corrosion?
Yes, it can be customized with anti-corrosion powder.
